Customized Thickness Linear Optical Glass Ruler Optical Encoder Disk
• Standard rotary: 12mm - 107.95mm diameter, with or without hubs
• Custom rotary: special ID's, OD's (up to 304.8mm), index mark outside the main track and special low CTE materials
• Mounting of hubs for rotary scales: can mount and align standard, custom, or customer-supplied hubs
• Rotary segments: any angle range; wide range of radius values
Custom scales or rotary segments are available in OEM quantities.
| Accuracy | ±3pm standard ±1pm available |
| Material | Soda lime glass |
| Typical CTE | 8 ppm/°C |
| Index | Center or End |

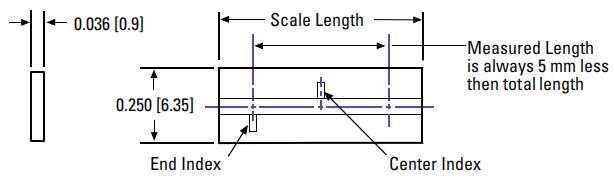

Standard linear optical glass ruler
| Model | L18 | L30 | L55 | L80 | L105 | L130 |
| Scale Length | 0.709 | 1.181 | 2.165 | 3.150 | 4.134 | 5.118 |
| Measured Length | 0.512 | 0.984 | 1.969 | 2.953 | 3.937 | 4.921 |
Note: other size please contact saller
Application Range
Standard Glass Scale application than a long instrument, measuring machine, universal tool microscope, universal length measuring machine and so on . such as a measurement calibrated optical components; in the coordinate boring machines, jig grinders and other precision machine tool line scale is used as a positioning device measurement or positioning, to and reading microscope, optical microscope, optical reading head or other ancillary uses. Microscope used where line scale membrane facing down ruler engraved lines in the back.
FAQ
1. About samples:
please pay the sample fee before we receive the first order.
2. About Customization:
We support customization of incoming drawings. The drawing format is as follows: dxf. dwg. gdsii. tdb.
3. Delivery date:
(1)We will deliver the standard products to you within 5 working days.
(2)Generally, customized products shall be delivered within 7 to 9 working days after payment and confirmation of drawings,excluding the day of confirmation.
(3) If there is mass customization, the delivery time shall be determined according to the specific situation.
4. Quality assurance: we will strictly control errors in the production process; Strict inspection shall be carried out before
delivery to ensure that the products are qualified and the packaging is intact.
