ZR Voice Coil Motor High Torque Rotary Motion High Speed High Force Linear Actuator
ZR Voice Coil Motor High Precision High Speed Max Acceleration 2G High Torque Rotary Motion
ZR Voice Coil Motor High Precision High Speed Max Acceleration 2G High Torque Rotary Motion
Open-loop control, fast soft landing;
Accurate pressure control with high linearity of current-pressure;
Equipped with high-precision DD motor to achieve hollow, high-precision, high-speed, high-torque rotary motion;
Z-axis adopts air bearing to achieve zero friction and effectively improve force control accuracy.
ZU1030-2 Product specification:
| Specification parameters | ZU1030-2 | |
| Driving and mechanical characteristics | Z-axis | R-axis |
| Effective travel(mm/°) | 30 | 360 |
| Rated thrust / torque(N/Nm) | 8.8 | 0.06 |
| Peak thrust / torque(N/Nm) | 35 | 0.14 |
| Rated current(Arms) | 2.2 | 1.8 |
| Peak current(Arms) | 8.9 | 4.6 |
| Line resistance(Ω) | 1.5 | 2.1 |
| Inductance(mH) | 0.3 | 1 |
| Reverse power constant(Vrms/m/s V/krpm) | 1.3 | 2.8 |
| Pole spacing(mm) | 36 | / |
| Rotor pole number(p) | / | 16 |
| Encoder resolution(μm P/R) | 0.05 | 432000 |
| Straightness/Circle Runout(μm ) | 3 | 3 |
| Maximum speed(mm/s rpm) | 500 | 1000 |
| Maximum acceleration(G) | 2 | 2 |
| Repeatability(μm/ °) | 0.2 | 0.001 |
| Power specification(VDC) | 24 | 24/48 |
| Z-axis guide type | Air bearing | |
| total weight(g) | 1800 | |
| Moving axis weight(g) | 600 | |
| Force control accuracy | ±0.5 | |
| main material | Aluminum, anodized black | |
| Operating ambient temperature | 10~40°C | |
| Ambient humidity | 20-80% (no condensation) | |
| Cable wire length | 5m | |

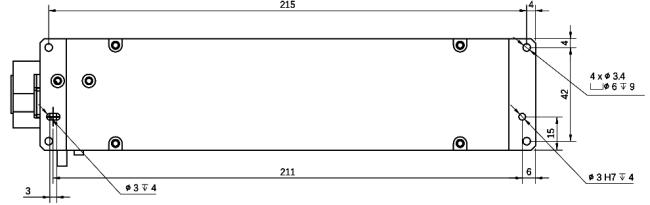

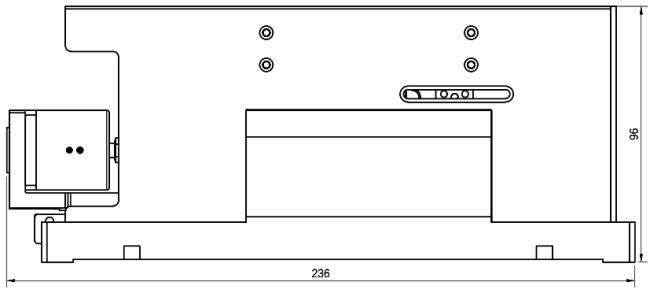

Product dimension drawing:
