Maximum Speed Cnc Z Axis Slide Aluminum Sliding Table Linear Actuator 24v
Z-Axis Force Control Platform Maximum Speed 300mm/S CNC Aluminum Sliding Table
Z-Axis Force Control Platform Maximum Speed 300mm/s CNC aluminum sliding table
Compact structure, low power loss
High precision position control can be realized from high speed to low speed and other different ranges. The rod linear motor with zero coat-effect is adopted with small speed fluctuation
A variety of counterweight options, more flexible use
VF10 series Product specification:
| Driving and mechanical characteristics | V1010 | V1030 | V1050 | Unit |
| Effective travel(mm) | Z | Z | Z | |
| Effective stroke(mm) | 10 | 30 | 50 | mm |
| Straightness(μm) | 3 | 3 | 3 | nm |
| Maximum speed(mm/s ) | 50 | 200 | 300 | mm/s |
| Maximum acceleration(G) | 15 | 15 | 15 | m/s2 |
| total weight(kg) | 1.2 | 1.4 | 1.6 | kg |
| Rated thrust (N/Nm) | 8.8 | N | ||
| Peak thrust (N/Nm) | 35 | N | ||
| Rated current(Arms) | 2.2 | Arms | ||
| Peak current(Arms) | 8.9 | Arms | ||
| Phase-to-phase resistance(Ω) | 1.5 | Q | ||
| Phase-to-phase inductance(mH) | 0.3 | mH | ||
| Pole spacing(mm) | 36 | mm | ||
| Power specifications(VDC) | 24 | VDC | ||

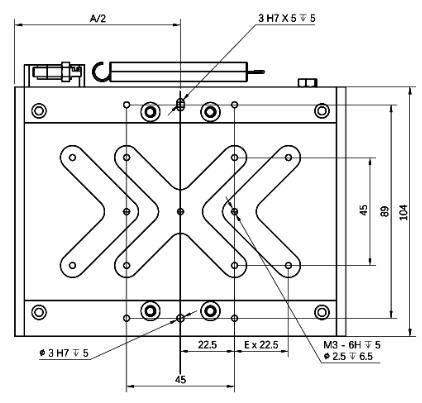

Product dimension drawing:
FAQ:
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-L/C, T/T, Western Union
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL and ect).Please confirm with us before placing orders.
Product certificate

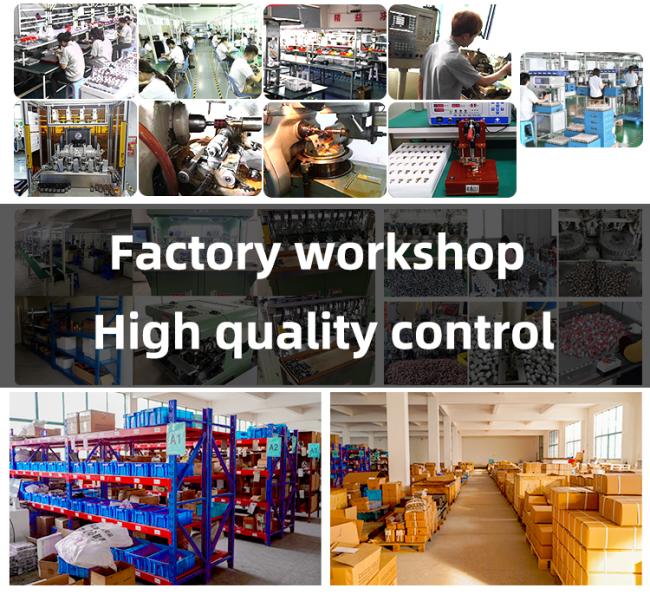

Factory environment
