Length 56mm Coil Linear Motor Structural Rigidity Easy To Install
Ironless Linear Motor Coil Unit Length 56-122mm High Power Density Submicron Positioning Accuracy
Ironless Linear Motor Coil Unit Length 56-122mm High Power Density Strong Structural Rigidity Easy To Install
| Performance | |||||||||
| Parameter | Remarks | Symbol | Unit | ELS42-03 | ELS42-06 | ELS42-09 | ELS42DHM-03S | ELS42DHM-06S | ELS42DHM-09S |
| Winding Type | S | S | S | Hall Integrated | |||||
| Motor type | 3 phases synchronous Ironless, 45Vacrms (60Vdc) | ||||||||
| Peak Force@20℃/s ↑ | Magnet@25℃ | Fp | N | 20 | 40 | 60 | 20 | 40 | 60 |
| Continuous Force | Coil@110℃ | Fc | N | 5 | 10 | 15 | 5 | 10 | 15 |
| Maximum Speed | 60V | Vmax | m/s | 6 | 6 | 6 | 6 | 6 | 6 |
| Motor Force Constant | Mount. Sfc.@20℃ | K | N/Arms | 6 | 6 | 6 | 6 | 6 | 6 |
| Motor Constant | Coils@25℃ | S | N²/W | 3 | 6 | 9 | 3 | 6 | 9 |
| Electrical | |||||||||
| Peak Current | Magnet@25℃ | Ip | Arms | 3.3 | 6.7 | 10 | 3.3 | 6.7 | 10 |
| Continuous Current | Coil@110℃ | Ic | Arms | 0.8 | 1.7 | 2.5 | 0.8 | 1.7 | 2.5 |
| Back EMF | Phase-Phase peak | Bemf | V/M/S | 5 | 5 | 5 | 5 | 5 | 5 |
| Resistance Per Phase | Coil@25℃ | Rph | Ω | 4.75 | 2.38 | 1.58 | 4.75 | 2.38 | 1.58 |
| Induction Per Phase | I<0.63lp | Lph | mh | 0.8 | 0.4 | 0.3 | 0.8 | 0.4 | 0.3 |
| Electrical Time Constant | Coil@25℃ | τe | ms | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 | 0.16 |
| Power Loss | All coils | Pc | W | 11.2 | 22.4 | 33.6 | 11.2 | 22.4 | 33.6 |
| Thermal | |||||||||
| Thermal R. | Coils to mount. Sfc. | Rth | ºC/W | 1.6 | 0.8 | 0.53 | 1.6 | 0.8 | 0.53 |
| Temp. Sensor | Temperature Cut-off | None | |||||||
| Mechanical | |||||||||
| Coil Unit Weight | ex.cables | W | Kg | 0.035 | 0.06 | 0.09 | 0.035 | 0.06 | 0.09 |
| Coil Unit Length | ex.cables | L | mm | 56 | 89 | 122 | 56 | 89 | 122 |
| Motor Attraction Force | Rms@0A | Fa | N | 0 | 0 | 0 | 0 | 0 | 0 |
| Magnet Pitch | N-N | τ | mm | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | Leadwires 3*0.3mm2 | 5.6(3*0.3mm2+5*0.08) | ||||
| Sensor Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | NA | |||||
| Cable life | Minimum | Cycles | ≥12,000,000 | ||||||
| Bending Radius Static | Minimum | mm | ≥4xφ | ||||||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | ||||||

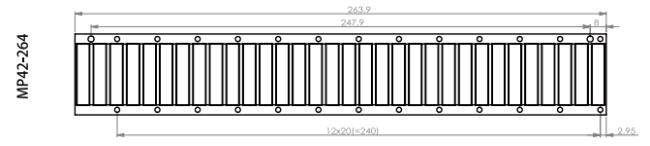

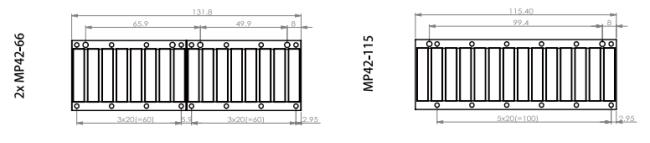

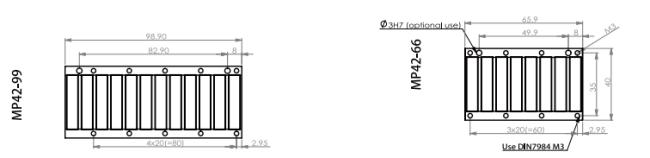

Product dimension drawing:
Product certificate
Through the certification we allow customers to our products with more confidence, but the most important thing is the quality of our products

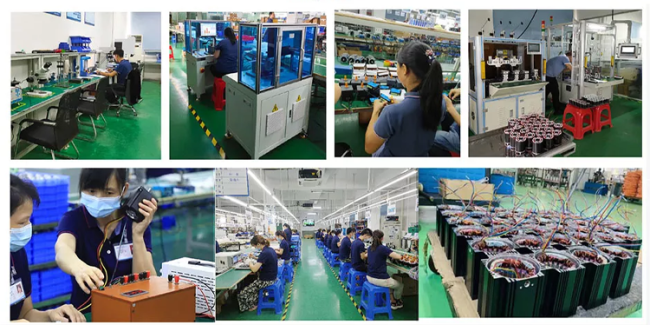

Factory environment
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 5 workdays.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty.
Q7: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
