Middle Torque High Speed Linear Motor Small Current N Linear Motor Winding
| Parameter | Remarks | Symbol | Unit | EL59C-6 |
| Winding Type | S | |||
| Motor type | 3 phases synchronous Ironless, 230Vacrms (320Vdc) | |||
| Peak Force@6℃/s ↑ | Magnet@25℃ | Tp | N.m | 40 |
| Continuous Force | Coil@110℃ | Tc | N.m | 11 |
Electrical
| Parameter | Remarks | Symbol | Unit | EL59C-6 |
| Current@Tp | Ip | Amps | 10.5 | |
| Max.Current@Tc | Ic | Amps | 3 | |
| Maximum Speed | @Tc@320Vrms | nmax | Rmp | 576 |
| Motor Torque Constant | Kt | Nm/Arms | 3.67 | |
| Motor Constant | Coil@25℃ | Km | Nm/W | 1.6 |
| Back EMF Constant | 25℃+/-10% | Bemf | V/(rad/sec) | 2.12 |
| Resistance Per Phase | Coil@25℃ | Ohm | 2.75 | |
| Inductance Per Phase | I<0.63lp | Lph | milli-Henry | 0.9 |
| Electrical Time Constant | Coil@25℃ | τe | ms | 0.33 |
| Max. Continuous Power Loss | All Coils | Pc | W | 98 |
Mechanical
| Parameter | Remarks | Symbol | Unit | EL59C-6 |
| Coil Unit Weight | ex.cables | Wc | Kg | 0.16 |
| Magnet Yoke 72°Weight | Wm | Kg | 0.98 | |
| Magnet Pitch | N-N | τ | Degree | 9 |

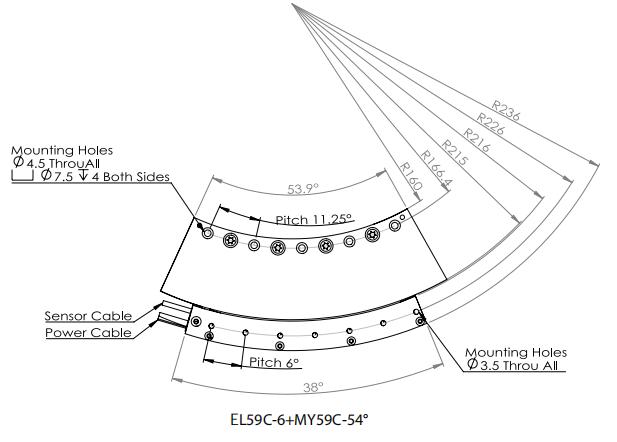

Product dimension drawing:
Product testing
