Low Noise 3C Manufacturing Voice Coil Motor For Medical Testing Equipment
Low Noise Voice Coil Motor For 3C Manufacturing Medical Testing Equipment
Low Noise Voice Coil Motor For 3C Manufacturing Medical Testing Equipment
voice coil motor adopts the technology of direct drive without iron core, which has no friction between the mover and stator, no tooth groove effect, light load, extremely high response speed and excellent reliability.Suitable for high frequency short stroke motion system.It is widely used in medical treatment, semiconductor manufacturing, small precision replacement measuring instruments, active shock absorption system and vibration platforms.
Features at a glance
* Suitable for high frequency short stroke motion system.
* Direct drive,no tooth groove effect.
* High response and light load.
* No friction between the mover and the stator.
* Excellent reliability.
Advanced production equipment and modern production management is an important basis for HXC to provide customers with high-quality products, our company widely absorbs the latest technical achievements in the industry, continuous innovation and strive to continuously provide customers with more excellent performance and quality of direct drive motion control solutions.
| Performance rating | Unit | QY35-L25 |
| Total trip | mm | 25 |
| Peak thrust | N | 120 |
| Continuous thrust (under temperature Tmax) | N | 35 |
| Motor constant (under 25 ℃) | 8 | |
| Voltage | V | 24 |
| Peak current | Arms | 8.5 |
| Continuous current (under temperature Tmax) | Arms | 2.5 |
| The most powerful | W | 205 |
| Resistance(under 25°C±10%) | Ω | 3.6 |
| Inductance ±20% | mH | 2.6 |
| potential constant(under25°C±10%) | Vpeak/m/s | 14.2 |
| Thrust constant(under25°C±10%) | N/Arms | 14.2 |
| Rotor coil weight±15% | kg | 0.49 |
| Total weight±15% | kg | 1.98 |
| Maximum allowable coil temperature | °C | 150 |
| Positioning accuracy | um | ±5 |
| Repeat positioning accuracy | um | ±1 |

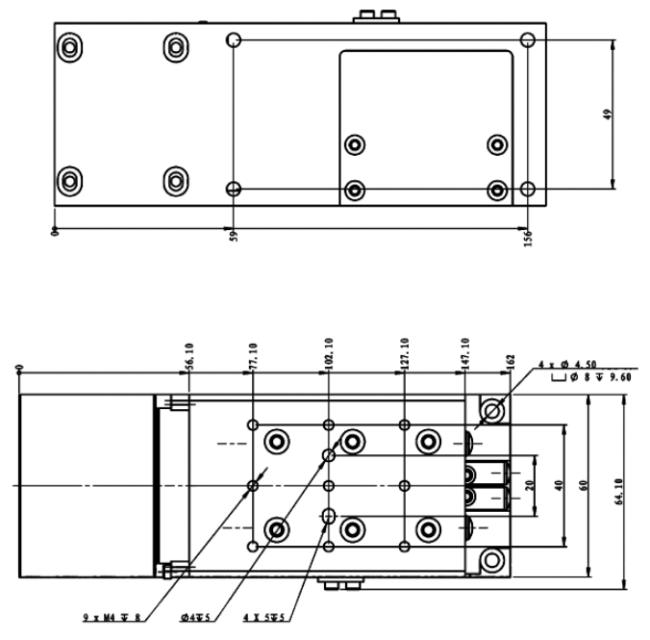

Outline dimension drawing
FAQ:
Q1: Are you manufacturer?
A1: Yes
Q2: What's the shipping/freight cost?
A2: It depends on the quantities and shipping methods.
Q3: What is the delivery time?
A3: It takes about 10-15 working days for sample order and 20-25 working days for quantity within 100pcs. Please check with us
when you place an order.
Q4: What is the material of your motor?
A4: Most is steel,some is aluminum.
Q5: What’s the weight does the motor bear?
A5: It depends on,different model can bear different weight.
Product certificate

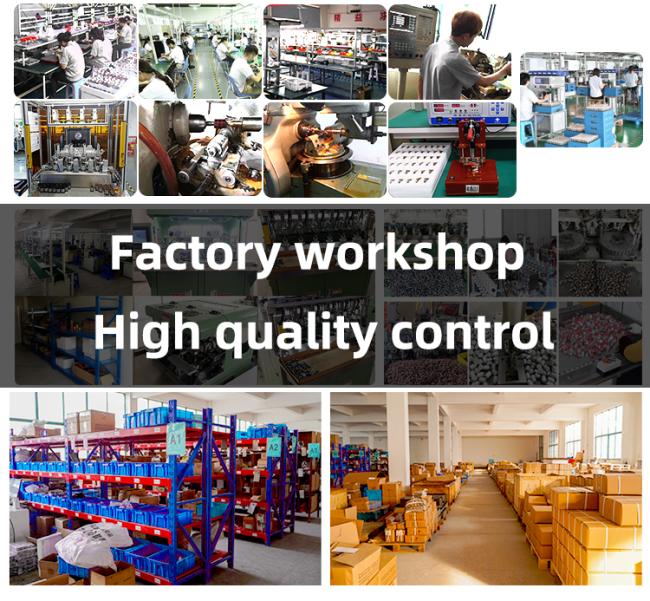

Factory environment
