Customized Small Electric Magnetic Motor Voice Coil Actuator Accelerated Speed 20G
Customized Small Electric Magnetic Motor Voice Coil Actuator Accelerated Speed 20G
Customized Small Electric Magnetic Motor Voice Coil Actuator Accelerated Speed 20G
Thrust
● Peak: 6-1000N
● Rating: 2-700N
Maximum acceleration
● 20 G
External feedback
● Optional grating or magnetic grating displacement sensor (optional)
● Maximum 0.05um resolution and 0.1um repeatable positioning accuracy
Effective stroke
● 1 mm - 50 mm
Advanced production equipment and modern production management is an important basis for HXC to provide customers with high-quality products, our company widely absorbs the latest technical achievements in the industry, continuous innovation and strive to continuously provide customers with more excellent performance and quality of direct drive motion control solutions.
| parameter | Unit | EVM15-15 |
| Peak thrust | N | 45 |
| Continue push | N | 15.6 |
| Peak current | A | 4.9 |
| Rated current | A | 1.7 |
| Thrust constant | N/A | 9.2 |
| back emf constant | Vpk/m/s | 9.2 |
| Maximum voltage | V | 27.9 |
| Total trip | mm | 15 |
| Dc resistance | Ω | 5.7 |
| Inductance | mH | 2.9 |
| Max power dissipation | W | 167 |
| Side clearance | mm | 0.5 |
| Thermal resistance | a/w | 7.6 |
| Highest temperature coil allows | ℃ | 150 |
| Weight of coil component | g | 58 |
| Magnetic steel component weight | g | 220 |
| Motor weight | g | 278 |

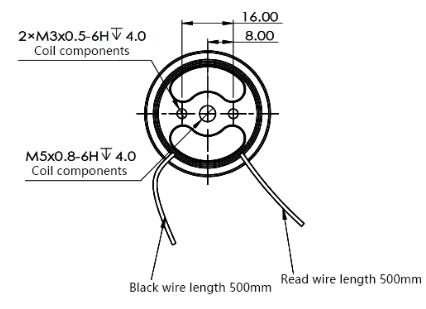

Outline dimension drawing
