Rotation Position 17Bit Linear Rotary Actuators ZR Voice Coil Motor Accuracy Within 3G
ZR Voice Coil Motor Stroke Resolution Up To 1μm Rotation Position Resolution 17Bit Thrust Repeat Accuracy Within ±3G
ZR Voice Coil Motor Stroke Resolution Up To 1μm Rotation Position Resolution 17Bit Thrust Repeat Accuracy Within ±3G
High precision magnetic encoder, up to micron resolution.
The voice coil actuator is a direct drive motor with micron-level magnetic encoder. When repeatedly positioning to the same point, the precision deviation of the stopping position is ± 1μm.
The force generated by the voice coil actuator is directly proportional to the current. With the use of high-performance guide rail, the coil of the motor and the stator part have no contact, no wear, the maximum precision force control can reach ±3 G.
The actuator is highly integrated design, and the minimum thickness of the series products can reach 20mm, which greatly saves the internal space of the module equipment, and is conducive to the matrix combination and arrangement of multiple motors.
Custom service
Effective stroke, torque, current, speed, cable length, etc., are different from the standard model, can be customized according to customer requirements.
ZR2025 Product specification:
| ZR2025 | |||||||
| Straight line part parameter | Rotating part parameters | Electrical interface definition | |||||
| Parameter | Numerical | Parameter | Numerical | Interface | Define | Interface | Define |
| Effective stroke(mm) | 25 | Rated torque(mNm) | 17.5 | 1 | A+ | 14 | GND |
| Resolution(μm) | 0.1,0.5,1 | Encoder(Bit) | 17 | 2 | B+ | 15 | BAT- |
| Continue to push(N) | 6 | Instantaneous torque(mNm) | 43.8 | 3 | Z+ | 16 | PS+ |
| Peak thrust(N) | 15 | Rated current(A) | 1.3 | 4 | +5V | 17 | +5V |
| Sustained current(A) | 1.2 | IInstantaneous current(A) | 3.3 | 5 | GND | 18 | W |
| Peak current(A) | 2.5 | Constant torque(mNm/A) | 13.2 | 6 | GND | 19 | LM+ |
| Force constant (N/A) | 5.4 | voltage(V) | 24~48 | 7 | PS- | 20 | |
| DC resistance(Ω) | 13.5 | Rated speed (rpm) |
3000 | 8 | BAT+ | 21 | LM- |
| Inductance (mH) | 2.5 | 9 | 22 | ||||
| voltage(V) | 24~48 | 10 | A- | 23 | U | ||
| 11 | B- | 24 | |||||
| 12 | Z- | 25 | V | ||||
| 13 | +5V | 26 | |||||
Product dimension drawing:
FAQ:
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T, Western Union, L/C.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.

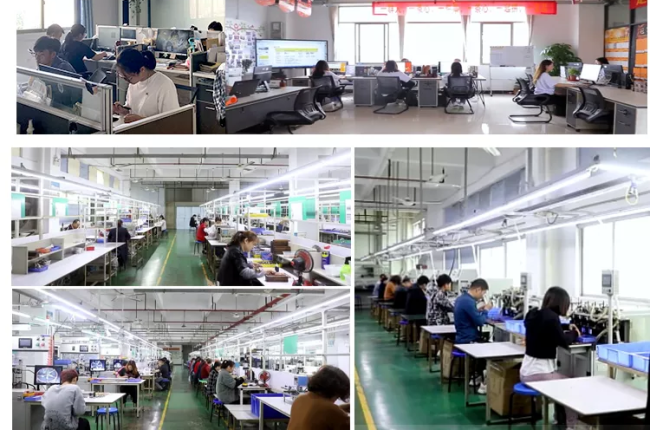

Factory environment
Product testing
Product certificate
