Effective Trip 25mm Linear Rotary Actuators Hollow Shaft Linear Rotary Motor
Linear Rotary Motor Effective Trip 25mm Hollow Shaft Design Easy To Absorb Materials
Linear Rotary Motor Effective Trip 25mm Hollow Shaft Design Easy To Absorb Materials
1. International leading force control accuracy (±0.01N), to ensure precision fitting
2. The thrust curve is smooth, the peak thrust is 8-45N, the effective stroke is 10-50mm
3. High speed pick-up and placement of hollow Z-axis, ultra-high cycle life, to achieve efficient production
| Model | Voltage(VDC) | Size(mm) | Weight(g) | Straight axis | ||||
| Effective trip(mm) | Maximum thrust(N) | Continue to push(N) | Force constant(N/A) | Resistance(Ω) | ||||
| GAS-LRS2025-1-48 | 48 | 160X80X20 | 745 | 25 | 12 | 6.1 | 6.15 | 13.3 |
| Sustained current(Amp) | Maximum current(Amp) | Inductance(mH) | Vacuum V, spring S | Driver | ||||
| 2.0 | 3.0 | 2.53 | V,S | Pulse/bus | ||||
| Rotary axis | ||||||||
| Peak torque(mN.M) | Rated torque(mN.M) | Encoder(Bit) | Rated speed(RPM) | Driver | ||||
| 43.5 | 17.5 | 17 | 3000 | Pulse | ||||

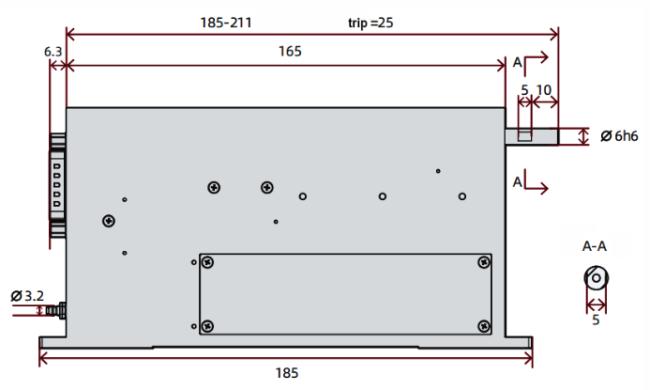

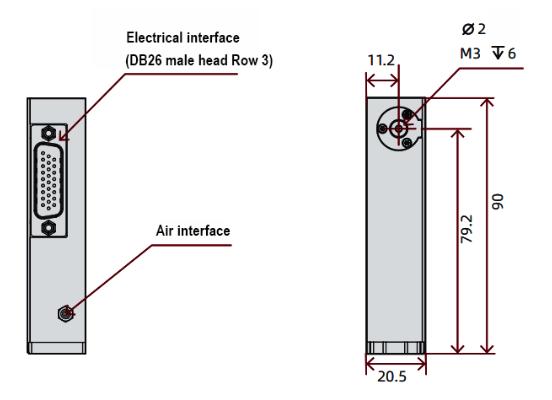

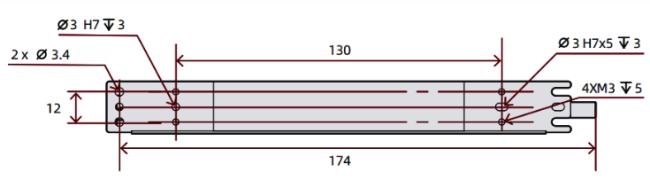

Product size drawing
FAQ:
Q1. Can I have a sample order?
A: yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 5-7 workdays.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: By express or air or sea .
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

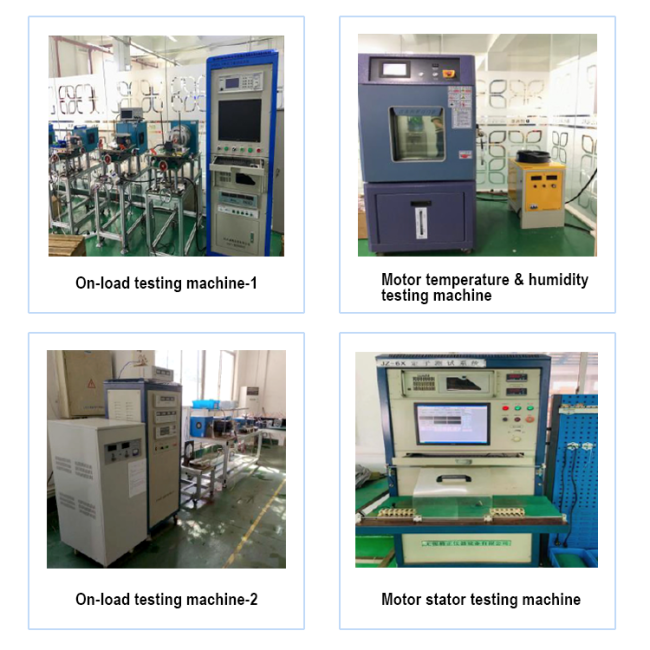

Test equipment
Product certificate
