Customized Linear Rotary Motor Shaft Realizes Simultaneous Linear Rotary Actuators
Customized Linear Rotary Motor motor Shaft Realizes Simultaneous Rotation And Linear Motion
Customized Linear Rotary Motor motor Shaft Realizes Simultaneous Rotation And Linear Motion
1. ±1.5g internal force control stability accuracy, ±2μm linear repeated positioning accuracy
2. Micron-level position feedback, obtain accurate data, improve efficiency and reliability
3. Bus control mode, support multi - motor real-time signal transmission, no delay
| Model | Voltage(VDC) | Size(mm) | Weight(g) | Straight axis | ||||
| Effective trip(mm) | Maximum thrust(N) | Continue to push(N) | Force constant(N/A) | Resistance(Ω) | ||||
| GAS-LRS2540-1-48 | 48 | 220X115X25 | 1160 | 40 | 35 | 9.0 | 5.40 | 3.2 |
| Sustained current(Amp) | Maximum current(Amp) | Inductance(mH) | Vacuum V, spring S | Driver | ||||
| 1.7 | 6.8 | 0.44 | V,S | Pulse/bus | ||||
| Rotary axis | ||||||||
| Peak torque(mN.M) | Rated torque(mN.M) | Encoder(Bit) | Rated speed(RPM) | Driver | ||||
| 230.0 | 64 | 13 | 3000 | Pulse | ||||

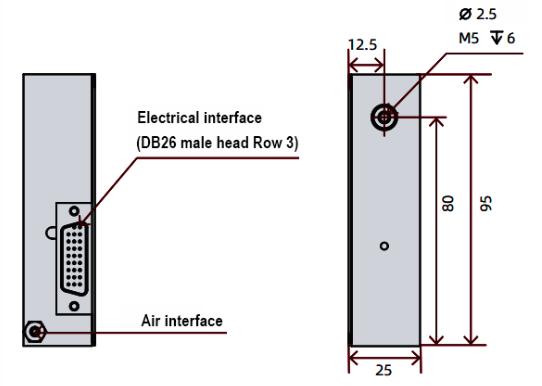

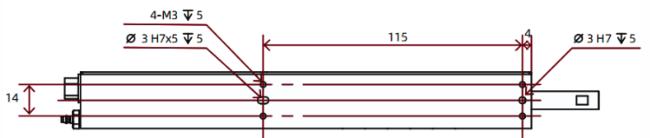

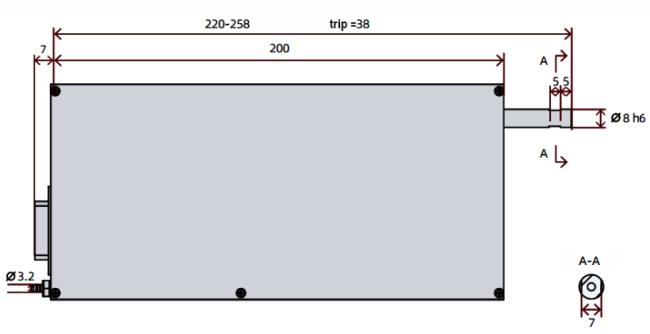

Product size drawing
FAQ:
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept L/C, T/T, Western Union.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
Product certificate
Factory environment
