Thrust Repetition Accuracy 0.01N Linear Rotary Actuators Highly Integrated
Linear Rotary Motor Thrust Repetition Accuracy Is Better Than 0.01N Effective Trip 30mm
Linear Rotary Motor Thrust Repetition Accuracy Is Better Than 0.01N Effective Trip 30mm
1. ±1.5g internal force control stability accuracy, ±2μm linear repeated positioning accuracy
2. The minimum thickness is 10mm, saving internal space, multi-point matrix arrangement
3. Highly integrated, solve the Z-axis self-loading problem, greatly improve the speed of equipment
| Model | Voltage(VDC) | Size(mm) | Weight(g) | Straight axis | ||||
| Effective trip(mm) | Maximum thrust(N) | Continue to push(N) | Force constant(N/A) | Resistance(Ω) | ||||
| GAS-LRS2630-1-48 | 48 | 190X85X26 | 980 | 30.0 | 10.0 | 4.0 | 5.0 | 11.4 |
| Sustained current(Amp) | Maximum current(Amp) | Inductance(mH) | Vacuum V, spring S | Driver | ||||
| 1.0 | 3.0 | 3.0 | V,S | Pulse/bus | ||||
| Rotary axis | ||||||||
| Peak torque(mN.M) | Rated torque(mN.M) | Encoder(Bit) | Rated speed(RPM) | Driver | ||||
| 43.5 | 17.5 | 17 | 3000 | Pulse | ||||

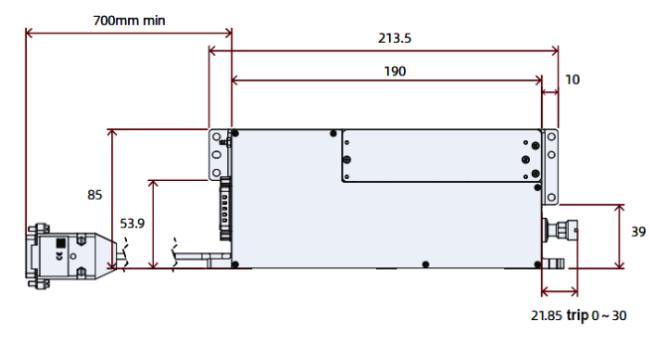

Product size drawing
FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 5 workdays.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty.
Q7: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
Application area
Product testing
