Linear Rotary Motor Repeatable Positioning Accuracy Was ±2μm In Line And ±0.01° In Rotation Customized
Linear Rotary Motor Repeatable Positioning Accuracy Was ±2μM In Line And ±0.01° In Rotation Customized
1.In operation, it supports programmed setting of strength, speed and acceleration
2.Soft landing function, reduce scratch rate, fragment rate, improve yield and productivity
3.Micron-level position feedback, obtain accurate data, improve efficiency and reliability
Custom service
Effective stroke, torque, current, speed, cable length, etc., are different from the standard model, can be customized according to customer requirements.
| Model | Voltage(VDC) | Size(mm) | Weight(g) | Straight axis | ||||
| Effective trip(mm) | Maximum thrust(N) | Continue to push(N) | Force constant(N/A) | Resistance(Ω) | ||||
| GAS-LRS2815-1-48 | 48 | 160X110X28 | 1070 | 15.0 | 18.0 | 8.0 | 6.7 | 12.0 |
| Sustained current(Amp) | Maximum current(Amp) | Inductance(mH) | Vacuum V, spring S | Driver | ||||
| 1.2 | 3.0 | 3.0 | V,S | Pulse/bus | ||||
| Rotary axis | ||||||||
| Peak torque(mN.M) | Rated torque(mN.M) | Encoder(Bit) | Rated speed(RPM) | Driver | ||||
| 300.0 | 100 | 20 | 3000 | Pulse | ||||

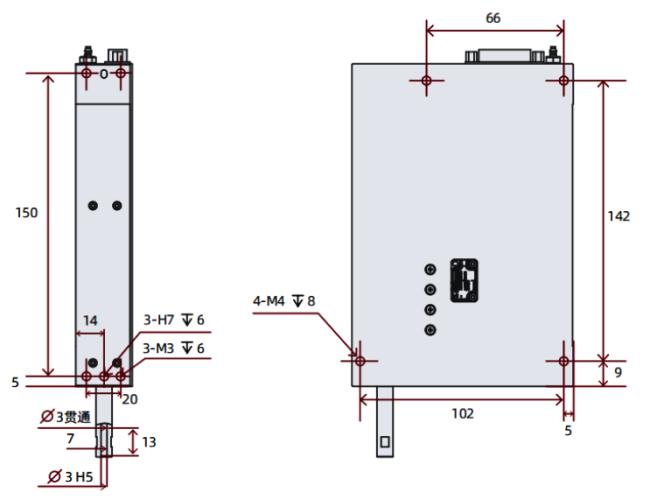

Product size drawing
