Accuracy 20bit Hollow Shaft Linear Rotary Actuators Easy To Absorb
Linear Rotary Motor Hollow Shaft Design Easy To Absorb Materials Encoder Accuracy 20bit
Linear Rotary Motor Hollow Shaft Design Easy To Absorb Materials Encoder Accuracy 20bit
1. The minimum thickness is 10mm, saving internal space, multi-point matrix arrangement
2. Soft landing function, reduce scratch rate, fragment rate, improve yield and productivity
3. ±1.5g internal force control stability accuracy, ±2μm linear repeated positioning accuracy
Our advantage:
Advanced production equipment and modern production management is an important basis for HXC to provide customers with high-quality products, our company widely absorbs the latest technical achievements in the industry, continuous innovation and strive to continuously provide customers with more excellent performance and quality of direct drive motion control solutions.
| Model | Voltage(VDC) | Size(mm) | Weight(g) | Straight axis | ||||
| Effective trip(mm) | Maximum thrust(N) | Continue to push(N) | Force constant(N/A) | Resistance(Ω) | ||||
| GAS-LRS4520-1-48 | 48 | 160X110X28 | 1120 | 25.0 | 18.0 | 8.0 | 6.7 | 12.0 |
| Sustained current(Amp) | Maximum current(Amp) | Inductance(mH) | Vacuum V, spring S | Driver | ||||
| 1.2 | 3.0 | 3.0 | V,S | Pulse/bus | ||||
| Rotary axis | ||||||||
| Peak torque(mN.M) | Rated torque(mN.M) | Encoder(Bit) | Rated speed(RPM) | Driver | ||||
| 300 | 100 | 20 | 3000 | Pulse | ||||
Product size drawing
Application area

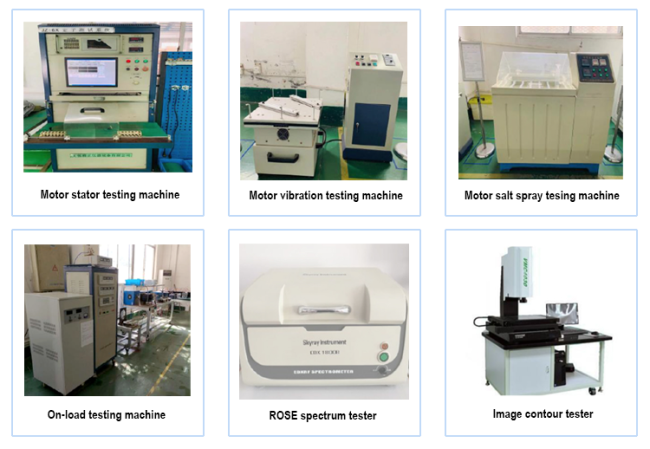

Test equipment
Product certificate
