Thrust Curve Linear Rotary Motor Short Stroke High Force Linear Actuator
Linear Rotary Motor Thrust Curve Is Smooth Peak Thrust Is 8-45N Effective Stroke Is 10-50mm
Linear Rotary Motor Thrust Curve Is Smooth Peak Thrust Is 8-45N Effective Stroke Is 10-50mm
Product features
1. The thrust repetition accuracy is better than 0.01N
2. the motor shaft to achieve simultaneous rotation and linear motion
3. hollow shaft design, easy to absorb materials
4. Z axis drop design, built-in spring
5. extremely compact structure, built-in grating
Application
1. Image Sensor & Lens Assembling
2. IC Advanced Packaging
3. LED/Opto Manufacturing
4. 3C Electronics Product AssemblingandTesting
Product parameters
| Model | Voltage(VDC) | Size(mm) | Weight(g) | Straight axis | ||||
| Effective trip(mm) | Maximum thrust(N) | Continue to push(N) | Force constant(N/A) | Resistance(Ω) | ||||
| GAS-LRS4520-1-48 | 48 | 160X110X28 | 1120 | 25.0 | 18.0 | 8.0 | 6.7 | 12.0 |
| Sustained current(Amp) | Maximum current(Amp) | Inductance(mH) | Vacuum V, spring S | Driver | ||||
| 1.2 | 3.0 | 3.0 | V,S | Pulse/bus | ||||
| Rotary axis | ||||||||
| Peak torque(mN.M) | Rated torque(mN.M) | Encoder(Bit) | Rated speed(RPM) | Driver | ||||
| 300 | 100 | 20 | 3000 | Pulse | ||||

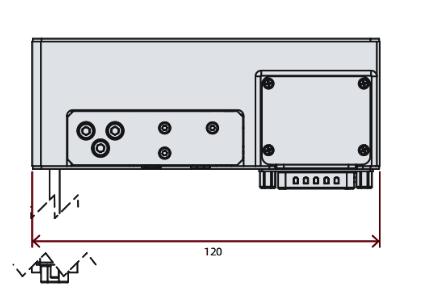

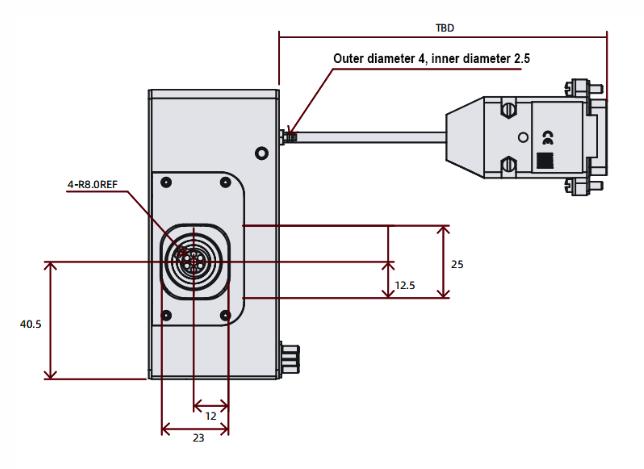

Product size drawing
FAQ:
Q1: Wonder if you accept small orders?
A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener ,we accept small order.
Q2: Can you send products to my country?
A2: Sure, we can. If you do not have your own ship forwarder, we can help you.
Q3: Can you do OEM for me?
A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.
Q4: What's your payment terms ?
A4: By T/T, Western Union, L/C.
Q5: How long is your production lead time?
A5:It depends on product and order qty. Normally, it takes us 15 days for an order with MOQ qty.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
Product certificate

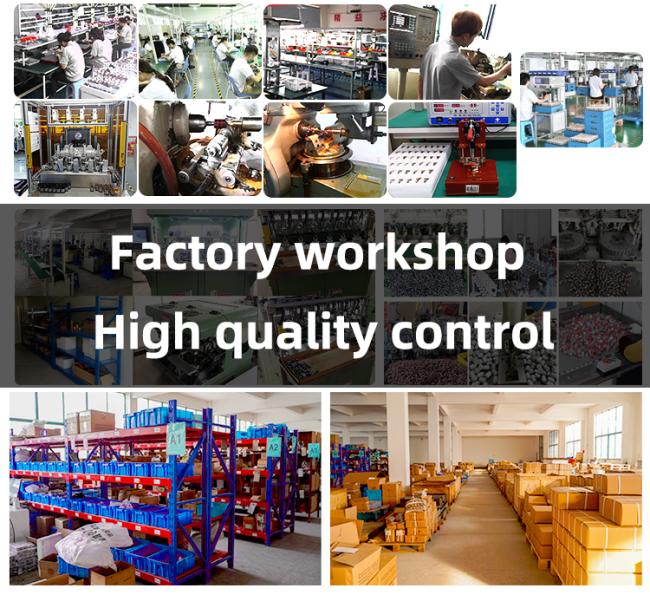

Factory environment
