Electric Motor Custom Motors Customizable DC Torque Motors High Power
Customizable DC Torque Motors High Power Density Motor Miniature Direct Drive Electric Motor
Customizable DC Torque Motors High Power Density Motor Miniature Direct Drive Electric Motor
The integral type adopts high-precision photoelectric sensor, and the absolute value type and incremental rotary encoder can be selected;
The rotor pole can adopt various hole types, installation functions or different inner hole diameters according to the customer's requirements;
The winding, electrical and mechanical characteristics can be customized according to the voltage standard provided by the user.
1, power, current, speed, efficiency, power factor
2, shell protection structure type, protection grade
3. Installation structure and type
4. Cooling mode
5. Power grade and installation size
6, winding allowable temperature rise
7, operating conditions: altitude, ambient temperature, minimum temperature, Power supply voltage, frequency, no-load current value, etc
Can be customized according to customer requirements
specification
| Type | Peak Standstill | Max.no-load | Cont.Standstill | rotary inertia (Kg.m2*10-5) |
iron core (mm) |
||||
| Torque | Current | Voltage | Torque | Current | Voltage | ||||
| N.M | A | V | r/min | N.M | A | V | |||
| ≥ | ±12.5% | ±12.5% | ±10% | ≥ | ±12.5% | ±12.5% | |||
| DDSM40-008A | 1.4 | 2.35 | 36 | 535 | 0.7 | 1.175 | 18 | 15.4 | 8 |
| DDSM40-008B | 2 | 4 | 48 | 800 | 0.7 | 1.4 | 16.8 | 15.4 | 8 |
| DDSM40-008C | 2.5 | 6 | 48 | 1000 | 0.7 | 1.68 | 13.5 | 15.4 | 8 |
| DDSM40-008D | 2 | 6.1 | 28 | 750 | 0.7 | 2.1 | 9.7 | 15.4 | 8 |
| DDSM40-01A | 1.24 | 2.03 | 27 | 400 | 0.85 | 1.4 | 18.6 | 15.4 | 10 |
| DDSM40-01B | 2.2 | 2.9 | 48 | 550 | 0.85 | 1.1 | 18.4 | 15.4 | 10 |
| DDSM40-01C | 2.55 | 9.6 | 24/27 | 800 | 0.85 | 3.2 | 7.4 | 15.4 | 10 |
| DDSM40-01D | 1.8 | 3.5 | 48 | 800 | 0.85 | 1.6 | 21.3 | 15.4 | 10 |
| DDSM40-02A | 4.7 | 19.2 | 24/27 | 500 | 1.47 | 6 | 7.5 | 27.4 | 20 |
| DDSM40-02B | 4.49 | 9.2 | 48 | 600 | 1.47 | 3 | 15.7 | 27.4 | 20 |
| DDSM40-02C | 2.4 | 5.26 | 24/27 | 335 | 1.37 | 3 | 13.7 | 27.4 | 20 |
| DDSM40-02D | 2.25 | 2.45 | 48 | 335 | 1.37 | 1.5 | 29.4 | 27.4 | 20 |
| DDSM40-03A | 5.8 | 15.7 | 24/27 | 450 | 22 | 5.5 | 8.4 | 39.5 | 30 |
| DDSM40-03B | 5.5 | 7.' | 48 | 450 | 2.06 | 2.8 | 18 | 39.5 | 30 |
| DDSM40-03C | 2.76 | 3.75 | 24/27 | 208 | 22 | 3 | 19.2 | 39.5 | 30 |
| DDSM40-03D | 2.56 | 1.74 | 48 | 208 | 2.06 | 1.4 | 38.5 | 39.5 | 30 |
| DDSM40-06A | 29 | 100 | 80 | 2500 | 5.8 | 20 | 4 | 80.0 | 60 |
| DDSM40-06B | 20 | 21 | 48 | 450 | 5 | 525 | 12 | 80.0 | 60 |
FAQ :
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept L/C, T/T, Western Union.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
Product certificate

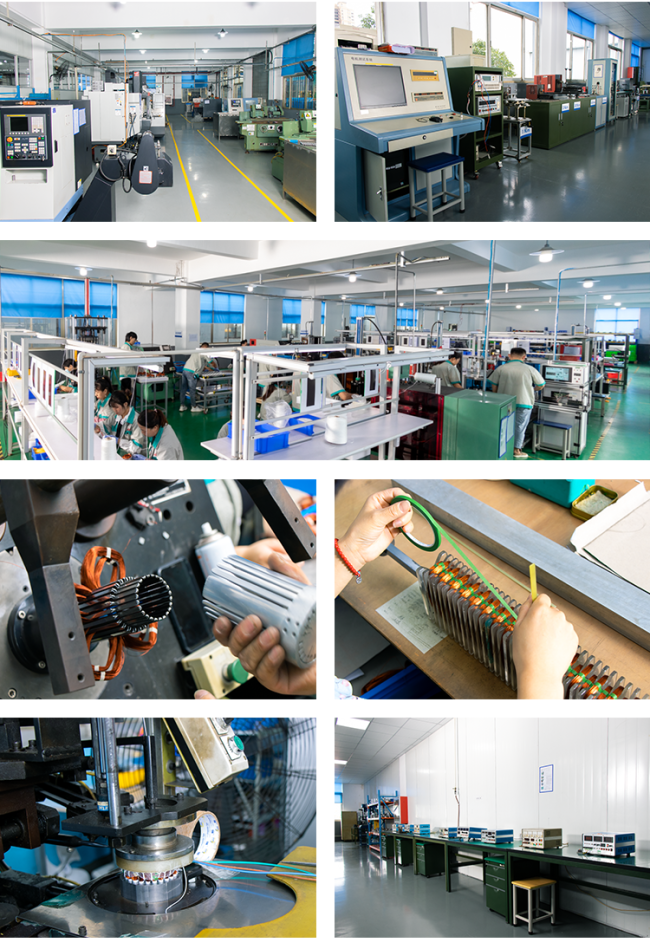

Factory environment
