Uniform Track XYR Stage Variable Speed XYR Alignment Platform With IO Absolute 6μM
XYR Stage Supports Uniform Track Speed Variable Speed Track Linkage With IO Absolute Accuracy 6μm
XYR Stage Supports Uniform Track Speed Variable Speed Track Linkage With IO Absolute Accuracy 6μm
Method of implementation:
Three axis magnetic axis motor and three axis precision screw module
Function:
Support the motion of any point around a point in space;
Support any point in the space to execute any path trajectory motion;
Global absolute accuracy after calibration: 6μm.
| Specification parameters | SA1603 | ||
| Driving and mechanical characteristic(mm) | X | Y | Z |
| Effective travel(mm) | 60 | 30 | 30 |
| straightness(μm) | 3 | 3 | 3 |
| Maximum speed(mm/s) | 500 | 200 | 100 |
| Maximum acceleration(m/s2) | 15 | 15 | 15 |
| Rated thrust (N) | 20 | 15 | 15 |
| Peak thrust (N) | 81 | 60 | 60 |
| Rated current(Arms) | 0.6 | 0.6 | 0.6 |
| Peak current(Arms) | 2.5 | 2.5 | 2.5 |
| Thrust destiny(N/Arms) | 33 | 24 | 24 |
| inverse power constant(Vrms/m/s) | 11 | 8.1 | 8.1 |
| Resistance(Ω) | 43 | 33 | 33 |
| Inductance(mH) | 16 | 12 | 12 |
| Pole spacing(N-N )(mm) | 60 | 60 | 60 |
| Sensor signal | Differential ABZ phase | Differential ABZ phase | Differential ABZ phase |
| Sensor resolution(μm) | 0.05 | 0.05 | 0.05 |
| Bidirectional repetition accuracy(μm) | ±0.1 | ±0.1 | ±0.1 |
| Guiding type | Take the peristalsis cross roller guide rail system | ||
| Material | Aluminum, anodized black | ||
| Operating ambient temperature | 10-40℃ | ||
| Ambient humidity | 20-80% (no condensation) | ||
| Cable wire length | 3m | ||
| Driving and mechanical characteristics | θx | θy | θz |
| Effective stroke(°) | ±5 | ±5 | ±4,5 |
| Maximum speed (°/s) | 13.64 | 11.3 | 8.5 |
| Resolution(°) | 0.000682 | 0.000378 | 0.000282 |
| Repeat positioning accuracy(°) | 0.002 | 0.001 | 0.001 |
| Steering mechanism | Cross roller bearing | Cross roller bearing | Cross roller bearing |
| Transmission mechanism | Ball screw | Ball screw | Ball screw |
| Motor type | Five-phase step enters a motor | Five-phase step enters a motor | Five-phase step enters a motor |
| Material | Aluminum, anodized black | ||
| Operating ambient temperature | 10~40°C | ||
| Ambient humidity | 20-80% (no condensation) | ||

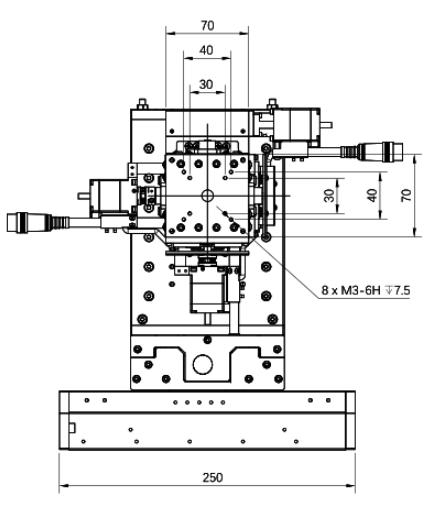

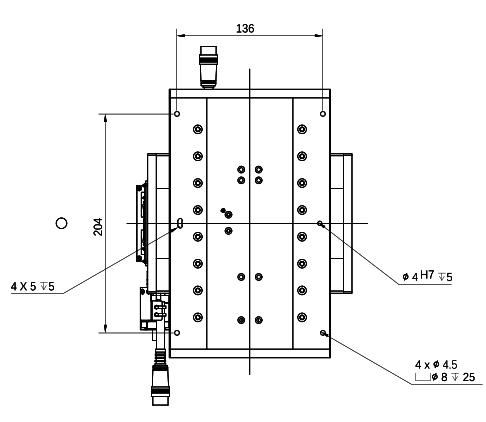

Outline dimension drawing
FAQ:
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept L/C, T/T, Western Union.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
