24V Hollow Cup DC Brushless Motor With Reducer Controller Long Life
24v Hollow Cup DC Brushless Motor With Reducer Controller Long Life Large Torque Motor
Hollow cup motor features:
1) Energy-saving:High energy conversion efficiency,more than 70%.
2) Reliable Operational Stability: Operates quietly and quickly with high efficiency and low resistance.
3) Low Noise : Starting and braking quietly, running with low noise.
4) High Speed : The rpm can reach 4500~26500±10%.
5) Fast Response:Rapid starting and braking with fast response.
Standard Type
| Motor Paremeters(25℃) |
Part No. |
With Hall Sensors | LEC-2266-001 | |||||||||||
| 1 | Nominal Power | P | W | 90W | ||||||||||
| 2 | Rated Voltage | U | V | 24 | ||||||||||
| 3 | No load speed ± 10% | N0 | rpm | 15000 | ||||||||||
| 4 | No load current ±50% | I0 | m A | 230 | ||||||||||
| 5 | Nominal speed | nN | rpm | 13200 | ||||||||||
| 6 | Nominal torque | MN | mNm | 35 | ||||||||||
| 7 | Nominal current | IN | A | 2.37 | ||||||||||
| 8 | Stall torque | MH | mNm | 335.9 | ||||||||||
| 9 | Stall current | IH | A | 22. 1 | ||||||||||
| 10 | Speed constant | Kn | rpm/V | 625 | ||||||||||
| 11 | Torque constant | KM | mNm/A | 15.24 | ||||||||||
| 12 | Terminal resistance ± 10% | R | Ω | 1.0 | ||||||||||
| 13 | Terminal inductance | L | mH | 0.21 | ||||||||||
| 14 | Rotor inertia | J | g ·cm2 | 7.8 | ||||||||||
| 15 | Mechanical time constant | τm | ms | 1.8 | ||||||||||
| Characteristic parameters | Range of operation | Definition of wiring | ||||||||||||
| 16 | Weight | 125g | Winding of motor | |||||||||||
| 17 | length of shaft (Acceptance of customization) | U | V | W | ||||||||||
| 18 | Ambient temperature -40℃ ~ +100℃ | Red | Black | White | ||||||||||
| 19 | Max. winding temperature 130℃ | Hall line | ||||||||||||
| 20 | Number of phases 3 | H+5V | HGND | HU | HV | HW | ||||||||
| 21 | Number of pole pairs 2 | Red | Black | Yellow | Brown | Gray | ||||||||
| 22 | Length of cable(Length of standard 300mm±10mm),acceptance of customization | Electric motor cable: Hall sensor: | ||||||||||||
Motor assembly configuration
| Gearbox | Feedback device | ||||||||||||
| Planetary | Encoder | ||||||||||||
| Standard: | GPA22 | Match: MENC20- 1024 (Magnetic encoder) | |||||||||||
| Reduction ratio X :1 | Level 1 | Level 2 | Level 3 | Level 4 | Level 5 | Optional:ENC20- 1000/ 1024/2000/2048 (Grating encoder) | |||||||
| 3.5 | 4.6 | 12.76 | 16.00 | 45.55 | 51.02 | 162. 19 | 182.22 | 581.05 | 650.77 | Resolver | |||
| 4.0 | 14.29 | 18.40 | 64.00 | 73.60 | 204.08 | 228.57 | 748.39 | 838. 19 | If you need other encoders, please consult the manufacturer. | ||||
| 21. 16 | 116.38 | 139. 15 | 256.00 | 302.29 | 938.78 | 1079.59 | Optional brake | ||||||
| 389.34 | 1241.53 | 1557.38 | 24 VDC brake | ||||||||||
| 1790.98 | 1177.60 | Drive | |||||||||||
| Length(mm) | 1354.24 | 2059.63 | Drive ( three rings) | Drive ( three rings) | Imported drive | ||||||||
| 21.4 | 27 | 30.8 | 34.6 | 38.4 |
LDP-4805 |
LDV-4805 |
Elmo |
||||||
| The above is the partial speed ratio of GPA22 , all levels of speed ratio can be selected; Reducer temperature: -40℃ ~ +100℃, if you need to match other reducer, please consult the manufacturer. | |||||||||||||
| Harmonic gearhead Worm gear Low backlash | |||||||||||||

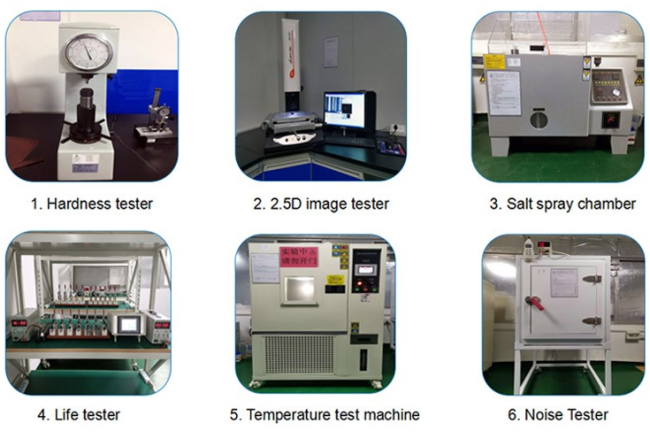

Test equipment:
