Low Voltage AC Servo Driver Low Power High Performance Compact 0-750W
Low Voltage AC Servo Drive Low Power High Performance Compact 0 - 750W
Product advantage:
Compact design with high power density, lighter weight and smaller volume; Support for multiple types of encoder feedback (absolute/incremental /HALL); Standard EtherCAT and CANopen bus communication protocols; Support 6 in 4 out digital interface, two analog input and STO function; High current drive technology, current loop bandwidth 4.5kHz; High-performance IIR FIR filter, dynamic PID algorithm; Maximum drive efficiency up to 99%;
Technical parameter
| Diamond | SDS01-A001 | SDS01-A005 | SDS01-A010 | SDS01-A020 |
| Rated voltage range | 12V-60V | |||
| Maximum input voltage | 72V | |||
| Maximum continuous current RMS | 1A | 5A | 10A | 20A |
| Peak current RMS | 2.5A | 12.5A | 25A | 50A |
| Peak current duration | 3S | |||
| Rated power hour efficiency | >99% | |||
| Digital input | 6 way DI(NPN,PNP) | |||
| Digital output | 4 way DO | |||
| Analog input | Two way analog inputs(±10V) | |||
| Number of axes | 1 axis | |||
| Communication mode | C:Canopen,Modbus,Analog quantity E:EtherCAT | |||
| Encoder type | A:Tama Chuan absolute value, incrementalABZ,HALL | |||
| Exterior structure | 0: The default ---- high power terminal, large radiator; 1: Custom ---- high power terminal, small radiator; 2: Custom ---- small power terminal, large radiator; |
|||
| Working environment temperature | 0:0~50℃(default);1:-40~50℃;2*:-55~50℃;3*:-70~50℃; | |||
| Special function | 0: Default, no special function | |||
| Basic function | A: No STO function (default). S: Supports the STO function. | |||
| Weight | Canopen:53g Ethercat:67g | |||
| Size | Canopen:55*50*25mm Ethercat:75*55*35mm | |||
| Installation mode | Flat mounting | |||

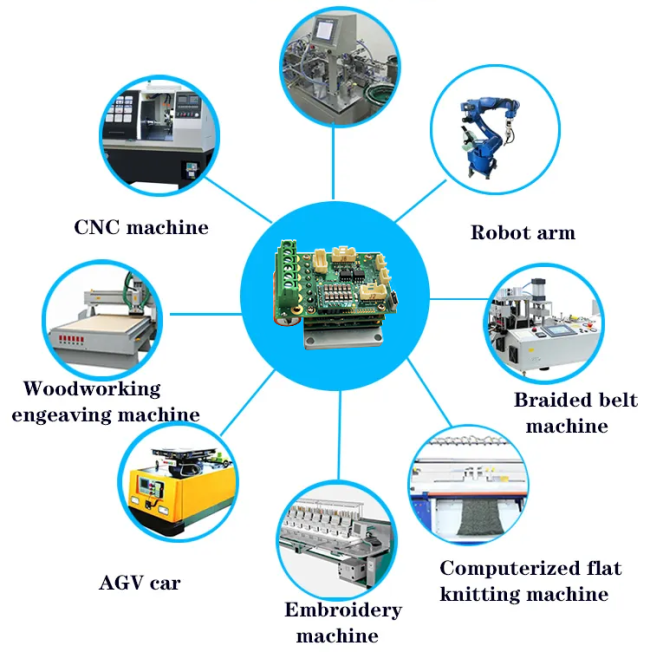

Main application areas:
Suitable for all kinds of large and medium-sized automation equipment and instruments,
For example: engraving machine, labeling machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, handling device, etc.
The application effect is particularly good in the equipment where users expect low vibration, low noise, high speed and high precision.
Product certificate:
FAQ:
1. Who are we?
We are based in Guangdong,which providing cnc total solutions&Robot arm, sell to Eastern Europe(20.00%),Mid East(20.00%),Southeast Asia(15.00%),Southern Europe(10.00%),South America(8.00%),North America(5.00%),Western Europe(5.00%),Eastern Asia(4.00%),Central America(4.00%),Northern Europe(4.00%),Africa(3.00%),Domestic Market(2.00%).
2. How can we guarantee quality?
Always finishing a pre full testing by our professional engineers; Always final 100% Inspection before shipment;
3. Could you supply total cnc system?
we can supply total cnc system, includes CNC controller, spindle drivers & motors, Axes
drivers & motors & related cables & kits,so you can plug and play.
4. what services can we provide?
1).Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,DDP,DDU,DAF；
2).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
3).Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
5. When can you receive our order?
All goods will be produced well within 5 to 7 workdays, except the customized products.
