Sub Micron Positioning Accuracy Kinematic High Speed Linear Motor Low Power Consumption
High Speed Low Power Consumption Sub-Micron Positioning Accuracy Kinematic Motor
High acceleration, high speed, sub-micron positioning accuracy and low power consumption
Extremely light kinetic mass and high power output ideal for vertical applications
Very compact and with high thrust density
0 suction and 0 cogging forces, high dynamic motion performance
Good thermal performance for small thrust applications
Customized motors with any length of highly flexible drag chain cable
Ironless Linear Motor Performance Parameters:
| Performance Parameters | |||||
| Parameters | Remarks | Symbols | Unit | EL32-03 | EL32-06 |
| Winding Type | S | S | |||
| Motor Type | 3 phases synchronous lronless,45Vacrms(60Vdc) | ||||
| Peak Forcea20℃/s↑ | Magnet@25℃ | Fp | N | 46 | 92 |
| Continuous Force | Coil@120 ℃ | Fc | N | 11.5 | 23 |
| Maximum Speed | @6ov | Vmax | m/s | 5 | 5 |
| Motor ForceConstant | Mount. sfc@20℃ | K | N/Arms | 7.3 | 7.3 |
| Motor Constant | Coikse25℃ | S | N²/W | 7.5 | 15 |
| Ironless Linear Motor Electrical Parameters | |||||
| Peak Current | Magnet@25℃ | lp | Arms | 6.3 | 12.6 |
| Continuous Current | Coil@120 ℃ | lc | Arms | 1.6 | 32 |
| BackEMF | PhasePhase peak | Bemf | V/M/S | 6.0 | 6 |
| Resistance Per Phase | Coila25℃ | Rph | Ω | 2.4 | 1.175 |
| Induction Per Phase | l<0.63lp | Lph | mh | 8 | 4 |
| Electrical Time Constant | Coile25℃ | τe | ms | 0.355 | 0.355 |
| Power Loss | All coils | Pe | W | 240 | 47 |
| Ironless Linear Motor Thermal performance parameters | |||||
| Thermal R. | Coils to mount.Sfc. | Rth | ℃/W | 3.2 | 1.6 |
| Temp.Sensor | Temperature Cut-off | NTC Optional | |||
| Ironless Linear Motor Mechanical Parameters | |||||
| Coil Unit Weight | ex.cables | W | kg | 0.04 | 0.08 |
| Coil Unit Length | ex.cables | L | mm | 49 | 97 |
| Motor Attraction Force | Rms@0A | Fa | N | 0 | 0 |
| Magnet Pitch | N-N | τ | mm | 24 | 24 |
| CableMass | M | kg/m | 0.065 | 0.065 | |
| Cable Type(Flex.cable) | length 1m | d | mm(AwG) | 4.5(24) | 4.5(24) |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mmtmm²) | 4.5(3*0.3mm²) | |
| Sensor CableType | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm²) | Customi Zable | |
| Cablelife | Minimum | Cycles | ≥12,000,000 | ||
| Bending Radius Static | Minimum | mm | ≥4xφ | ||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | ||

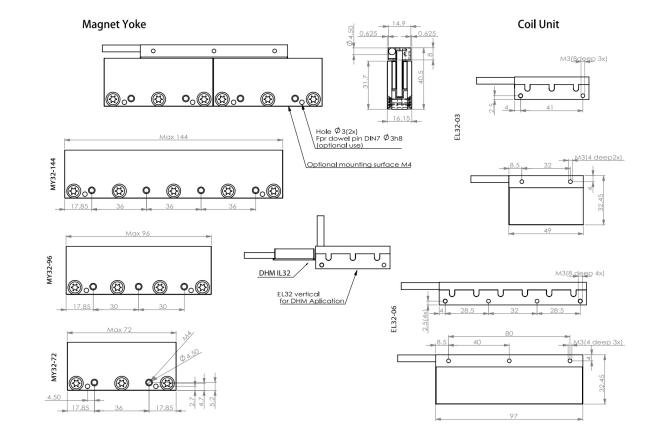

Dimensional assembly parameters diagram:
