High Current Drive High Power DC Servo Driver Small Size Strong Performance
DC Servo Driver High Current Drive High Power Small Size Strong Performance
The following feedback modes are supported:
1. Absolute encoder;
Direct support Tama Chuan single - circle, multi - circle absolute encoder.
2. Incremental encoder;
Support orthogonal coding, the maximum support frequency before frequency doubling 10M, 40M after frequency doubling.
3. Digital Hall sensor;
Achieve 4kHz commutation frequency and support 5V logic level.
4. Incremental encoder + digital Hall sensor;
The following communication protocols are supported
1. EtherCAT slave;
CoE (CANopen over EtherCAT);
support distributed clock;
support synchronous cycle mode, synchronous cycle 1 ~ 4 ms;
2. USB 2.0;
3. Modbus
4.CAN Open;
Technical parameter
| Diamond | SDS01-A001 | SDS01-A005 | SDS01-A010 | SDS01-A020 |
| Rated voltage range | 12V-60V | |||
| Maximum input voltage | 72V | |||
| Maximum continuous current RMS | 1A | 5A | 10A | 20A |
| Peak current RMS | 2.5A | 12.5A | 25A | 50A |
| Peak current duration | 3S | |||
| Rated power hour efficiency | >99% | |||
| Digital input | 6 way DI(NPN,PNP) | |||
| Digital output | 4 way DO | |||
| Analog input | Two way analog inputs(±10V) | |||
| Number of axes | 1 axis | |||
| Communication mode | C:Canopen,Modbus,Analog quantity E:EtherCAT | |||
| Encoder type | A:Tama Chuan absolute value, incrementalABZ,HALL | |||
| Exterior structure | 0: The default ---- high power terminal, large radiator; 1: Custom ---- high power terminal, small radiator; 2: Custom ---- small power terminal, large radiator; |
|||
| Working environment temperature | 0:0~50℃(default);1:-40~50℃;2*:-55~50℃;3*:-70~50℃; | |||
| Special function | 0: Default, no special function | |||
| Basic function | A: No STO function (default). S: Supports the STO function. | |||
| Weight | Canopen:53g Ethercat:67g | |||
| Size | Canopen:55*50*25mm Ethercat:75*55*35mm | |||
| Installation mode | Flat mounting | |||

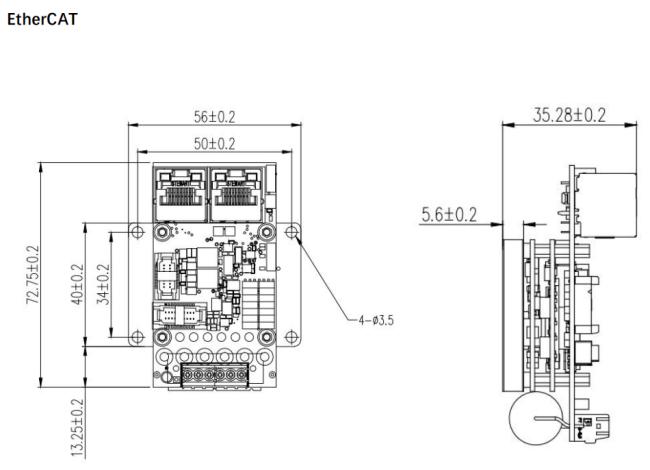

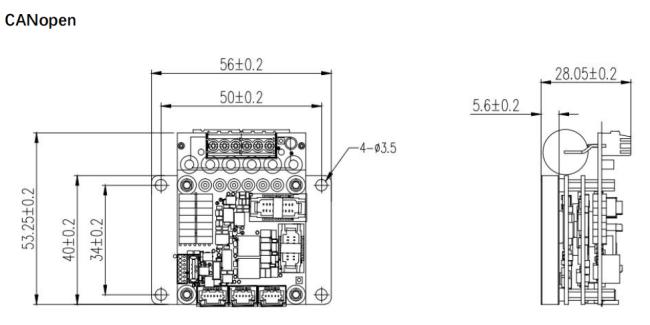

Product size:
Main application areas:
Suitable for all kinds of large and medium-sized automation equipment and instruments,
For example: engraving machine, labeling machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, handling device, etc.
The application effect is particularly good in the equipment where users expect low vibration, low noise, high speed and high precision.
