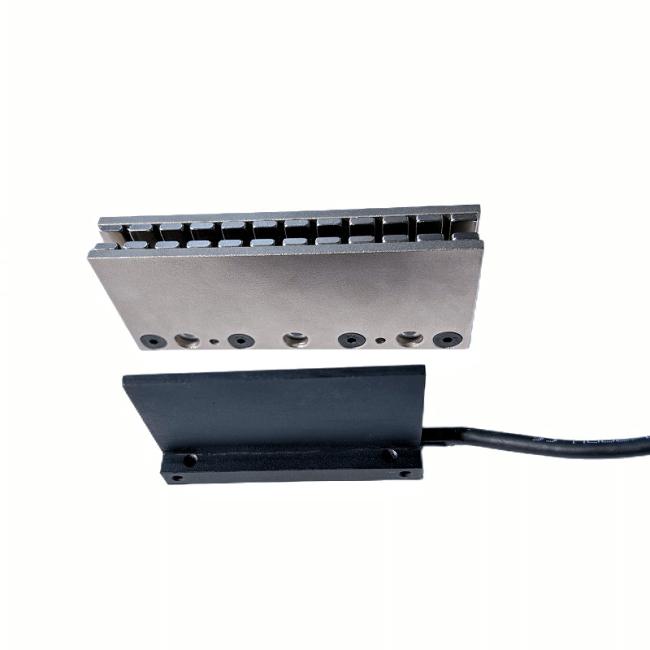

High Precision EL32 Series Submicron Kinematic Coreless Motor Small Thrust

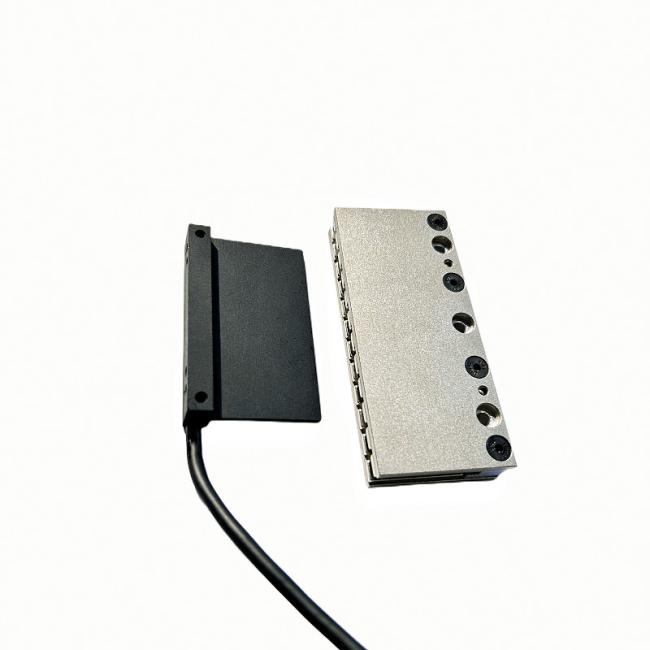

Small Thrust High Precision EL32 Series Submicron Coreless Kinematic Motor

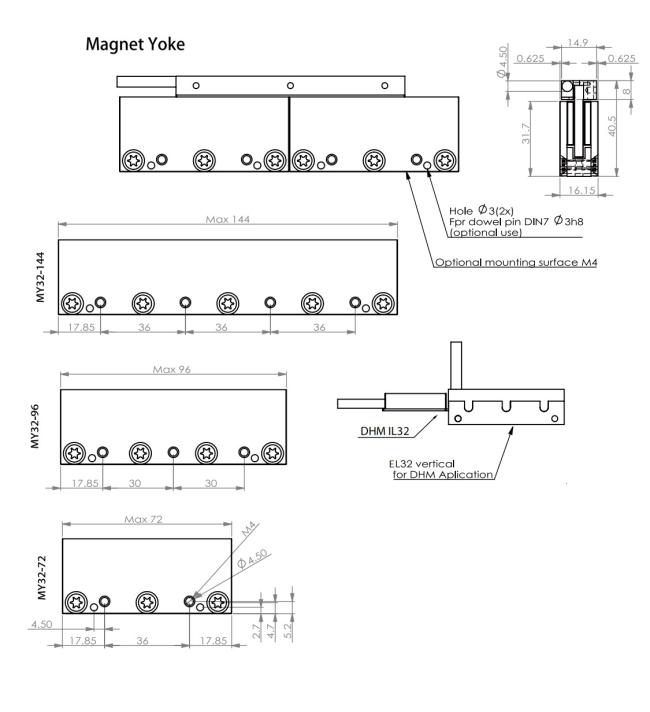

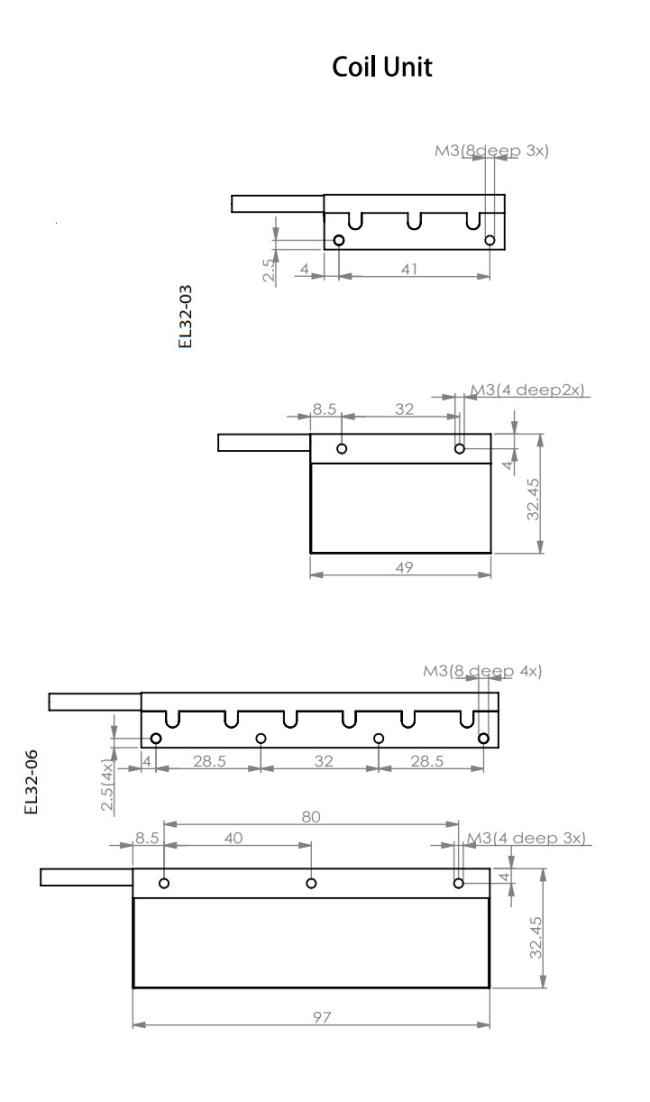

| Magnet Plate Mounting Dimensions | |||
| Length (mm) | 72 | 96 | 144 |
| M4 Bolts | 2 | 3 | 4 |
| Weight(Kg/m) | 2.3 | ||
| MagnetPlates can be jointed together without limits | |||
| Dig.Hall Sensorconnections | |||
| 1 | OV | White | 0 |
| 2 | 5~28V | Brown | 0 |
| 3 | Hall A | Green | 0 |
| 4 | Hall B | Yellow | 0 |
| 5 | Hall C | Red | 0 |
| Motor Connections | |||
| 1 | Phase U | Phase 1 | 0 |
| 2 | Phase V | Phase2 | 0 |
| 3 | Phase W | Phase 3 | 0 |
| 4 | PE | Yellow-Green | 0 |
| Temperature Sensor Connections | |||
| 1 | PTC 1KΩ | Brown | 0 |
| 2 | PTC 1KΩ | White | 0 |
| 3 | NTC | Yellow | 0 |
| 4 | NTC | Green | 0 |
| Performance Parameters | |||||
| Parameters | Remarks | Symbols | Unit | EL32-03 | EL32-06 |
| Winding Type | S | S | |||
| Motor Type | 3 phases synchronous lronless,45Vacrms(60Vdc) | ||||
| Peak Forcea20℃/s↑ | Magnet@25℃ | Fp | N | 46 | 92 |
| Continuous Force | Coil@120 ℃ | Fc | N | 11.5 | 23 |
| Maximum Speed | @6ov | Vmax | m/s | 5 | 5 |
| Motor ForceConstant | Mount. sfc@20℃ | K | N/Arms | 7.3 | 7.3 |
| Motor Constant | Coikse25℃ | S | N²/W | 7.5 | 15 |
| Electrical Parameters | |||||
| Peak Current | Magnet@25℃ | lp | Arms | 6.3 | 12.6 |
| Continuous Current | Coil@120 ℃ | lc | Arms | 1.6 | 32 |
| BackEMF | PhasePhase peak | Bemf | V/M/S | 6.0 | 6 |
| Resistance Per Phase | Coila25℃ | Rph | Ω | 2.4 | 1.175 |
| Induction Per Phase | l<0.63lp | Lph | mh | 8 | 4 |
| Electrical Time Constant | Coile25℃ | τe | ms | 0.355 | 0.355 |
| Power Loss | All coils | Pe | W | 240 | 47 |
| Thermal performance parameters | |||||
| Thermal R. | Coils to mount.Sfc. | Rth | ℃/W | 3.2 | 1.6 |
| Temp.Sensor | Temperature Cut-off | NTC Optional | |||
| Mechanical Parameters | |||||
| Coil Unit Weight | ex.cables | W | kg | 0.04 | 0.08 |
| Coil Unit Length | ex.cables | L | mm | 49 | 97 |
| Motor Attraction Force | Rms@0A | Fa | N | 0 | 0 |
| Magnet Pitch | N-N | τ | mm | 24 | 24 |
| CableMass | M | kg/m | 0.065 | 0.065 | |
| Cable Type(Flex.cable) | length 1m | d | mm(AwG) | 4.5(24) | 4.5(24) |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mmtmm²) | 4.5(3*0.3mm²) | |
| Sensor CableType | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm²) | Customi Zable | |
| Cablelife | Minimum | Cycles | ≥12,000,000 | ||
| Bending Radius Static | Minimum | mm | ≥4xφ | ||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | ||
