MicroE High Performance Small Volume SMT Magnetic Rotary Encoders High Accuracy
High Performance High Accuracy Small Volume SMT Magnetic Rotary Encoders
| SCALE | FUNDAMENTAL CPR |
MAX SPEED RPM |
RESOLUTION CE300-40, CE-40GC | RESOLUTION CE300-4 | ||||
| CPR | μRAD | ARC-SEC | CPR | μRAD | ARC-SEC | |||
| R1206CE | 825 | 26200 | 33000 | 190.0 | 39.3 | 3300 | 1900 | 393.0 |
| R1506CE | 1024 | 21100 | 40960 | 153.0 | 31.6 | 4096 | 1530 | 316.0 |
| R1910CE | 1250 | 17280 | 50000 | 126.0 | 25.9 | 5000 | 1260 | 259.0 |
| R3213CE | 2048 | 10550 | 81920 | 76.7 | 15.8 | 8192 | 767 | 158.0 |
| R5725CE | 4096 | 5270 | 163840 | 38.3 | 7.9 | 16384 | 383 | 79.1 |
| R10851CE | 8192 | 2640 | 327680 | 19.2 | 4.0 | 32768 | 192 | 39.6 |
| ROTARY SCALE IDENTIFICATION AND SIZE | |||||||||
| SCALE ONLY |
A (GLASS OD)* |
B (OPTICAL DIAMETER)* |
C (GLASS ID)* |
GLASS THICKNESS* |
SCALE WITH OPTIONAL HUB |
D (HUB ID)* |
E (DIAMETER)* |
F (THREAD) |
G (BCD)* |
| R1206CE | 0.472(12.00) | 0.414(10.50) | 0.250(6.35) | 0.036(0.91) | R1206CE-HF | 0.125(3.18) | N/A | N/A | N/A |
| R1506CE | 0.571(14.50) | 0.513(13.04) | 0.250(6.35) | 0.036(0.91) | R1506CE-HF | 0.125(3.18) | N/A | N/A | N/A |
| R1910CE | 0.750(19.05) | 0.627(15.92) | 0.375(9.53) | 0.092(2.34) | R1910CE-HG | 0.125(3.18) | 0.047(1.19) | 0-80 | 0.250(6.35) |
| R3213CE | 1.250(31.75) | 1.027(26.08) | 0.500(25.40) | 0.092(2.34) | R3213CE-HH | 0.250(6.35) | 0.070(1.78) | 2-56 | 0.370(9.40) |
| R5725CE | 2.250(57.15) | 2.053(52.15) | 1.000(25.40) | 0.092(2.34) | R5725CE-HC | 0.500(12.70) | 0.136(3.45) | 8-32 | 0.750(19.05) |
| R10851CE | 4.250(107.95) | 4.106(104.30) | 2.000(50.80) | 0.092(2.34) | R10851CE-HD | 1.000(25.40) | 1.36(3.45) | 8-32 | 1.375(34.80) |

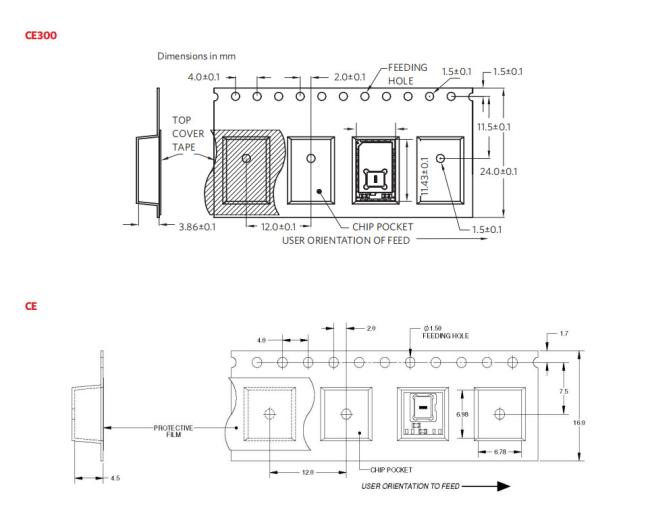

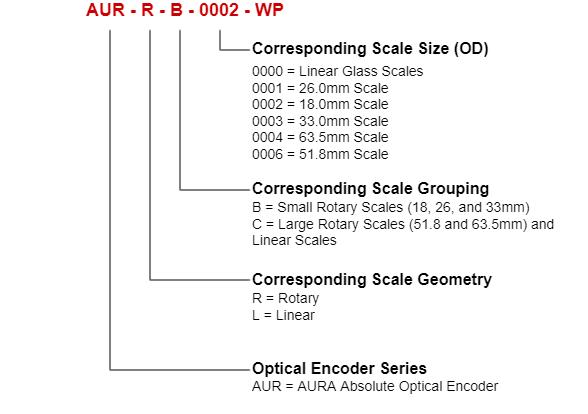

Aura Linear Encoder Part Numbers
FAQ:
Q: What’s your MOQ?
A: 1pcs
Q: How to order your encoder?
A: Contact us, or email us, we will reply you as soon as possible.
Q: Can you product ship to our country?
A: Yes, please advise your destination and zip code, we will check freight cost for you immediately.
Q: How to get the latest price?
A: Contact us and tell me the encoder model selection.
Q: How to select a right encoder model?
A: A right encoder model is based on different applications and parameters, you could contact us for technical support if you have any query.
Q: Do you offer technical support?
A: Yes, we have professional technician who can solve all your doubts.
Q: Can you factory offer a sample?
A: Yes, sample can be provided.
Q: How to pay for a sample?
A: Currently, our factory accept L/C, T/T, Western Union.
Q: What’s your encoder product guarantee policy?
A: 1 year quality warranty and life-long technical support.
If you have any doubt on selecting the model, you are welcome to contact us for more assistant.
