Direct Drive Electric Linear Ironless Permanent Magnetic Servo Motor High Precision
Servo Motor Performance
| Parameter | Remarks | Symbol | Unit | EL59-3 | EL59-6 | EL59-9 | EL59-12 | ||||
| Winding Type | N | S | N | S | N | S | N | S | |||
| Motor Type | 3 phases synchronous Ironless 230Vacrms(320Vdc) | ||||||||||
| Peak Force | Magnet@25°C | Fp | N | 105 | 105 | 210 | 210 | 315 | 315 | 420 | 420 |
| Continuous Force | Coil@120°C | Fc | N | 30 | 30 | 60 | 60 | 90 | 90 | 120 | 120 |
| Maximum Speed | @320V | Vmax | m/s | 9.2 | 16.7 | 9.2 | 16.7 | 9.2 | 16.7 | 9.2 | 16.7 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 36.3 | 20 | 36.3 | 20 | 36.3 | 20 | 36.3 | 20 |
| Motor Constant | Coils@25°C | S | N2/W | 24 | 24 | 47 | 47 | 71 | 71 | 95 | 95 |
Servo Motor Electrical
| Parameter | Remarks | Symbol | Unit | EL59-3 | EL59-6 | EL59-9 | EL59-12 | ||||
| Peak Current | Magnet@25°C | lp | Arms | 2.9 | 5.3 | 5.8 | 10.5 | 8.7 | 15.8 | 11.6 | 21 |
| Continuous Current | Coil@120°C | lc | Arms | 0.8 | 1.5 | 1.7 | 3 | 2.5 | 4.5 | 3.3 | 6 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 30 | 16 | 30 | 16 | 30 | 16 | 30 | 16 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 18.55 | 5.45 | 9.29 | 2.74 | 6.19 | 1.82 | 4.65 | 1.36 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 6.5 | 1.9 | 3.3 | 1 | 2.2 | 0.6 | 1.6 | 0.5 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Power Loss | All coils | Pc | W | 52 | 52 | 104 | 104 | 156 | 156 | 208 | 208 |

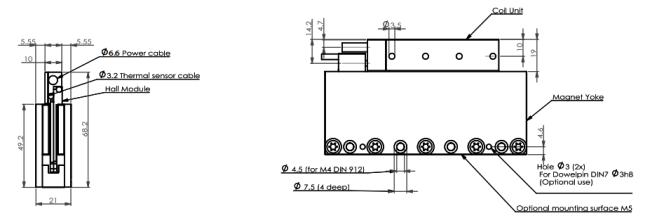

Ironless Linear Motor dimension drawing:

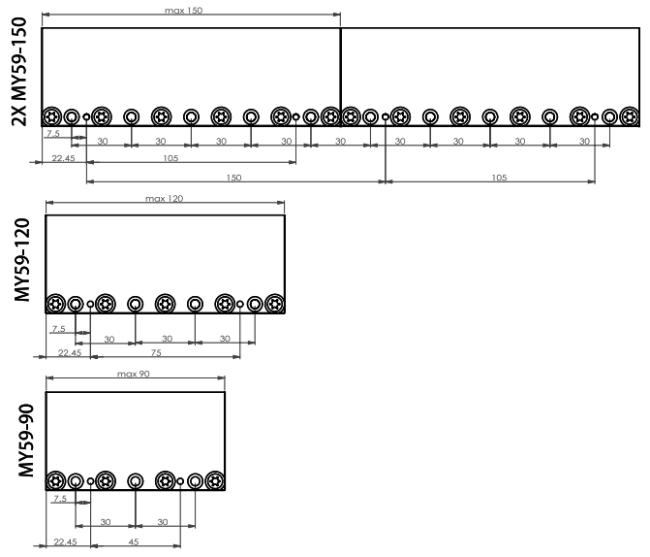

Magnet Yoke

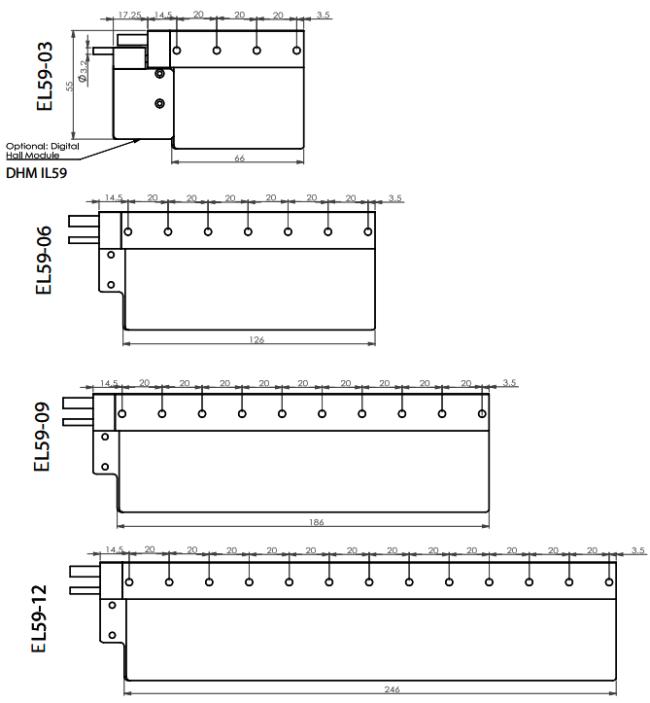

Coil Unit
Ironless Linear Motor Product testing
Application area
