High Precision Ironless Linear Motor U Channel For Semiconductor
Performance
| Parameter | Remarks | Symbol | Unit | EL109-3 | EL109-6 | EL109-9 | EL109-12 | EL109-18 | |||||
| Winding Type | N | S | N | S | N | S | N | S | N | S | |||
| Motor Type | 3 phases synchronous Ironless 230Vacrms(320Vdc) | ||||||||||||
| Peak Force | Magnet@25°C | Fp | N | 645 | 645 | 1290 | 1290 | 1935 | 1935 | 2580 | 2580 | 3870 | 3870 |
| Continuous Force | Coil@120°C | Fc | N | 125 | 125 | 250 | 250 | 375 | 375 | 500 | 500 | 750 | 750 |
| Maximum Speed | @320V | Vmax | m/s | 3.1 | 7.7 | 3.1 | 7.7 | 3.1 | 7.7 | 3.1 | 7.7 | 3.1 | 7.7 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 107 | 43.4 | 107 | 43.4 | 107 | 43.4 | 107 | 43.4 | 107 | 43.4 |
| Motor Constant | Coils@25°C | S | N2/W | 242 | 242 | 483 | 483 | 725 | 725 | 966 | 966 | 1449 | 1449 |
Electrical
| Parameter | Remarks | Symbol | Unit | EL109-3 | EL109-6 | EL109-9 | EL109-12 | EL109-18 | |||||
| Peak Current | Magnet@25°C | lp | Arms | 6 | 14.9 | 12.1 | 29.7 | 18.1 | 44.6 | 24.1 | 59.4 | 36.2 | 89.2 |
| Continuous Current | Coil@120°C | lc | Arms | 1.2 | 2.9 | 2.3 | 5.8 | 3.5 | 8.6 | 4.7 | 11.5 | 7 | 17.3 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 87 | 35 | 87 | 35 | 87 | 35 | 87 | 35 | 87 | 35 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 15.8 | 2.6 | 7.9 | 1.29 | 5.3 | 0.86 | 3.95 | 0.65 | 2.6 | 0.43 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 28.4 | 4.7 | 14.2 | 2.3 | 9.5 | 1.5 | 7.1 | 1.2 | 4.7 | 0.8 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Power Loss | All coils | Pc | W | 88 | 88 | 176 | 176 | 264 | 264 | 352 | 352 | 528 | 528 |
Ironless Linear Motor dimension drawing:
Magnet Yoke
Coil Unit

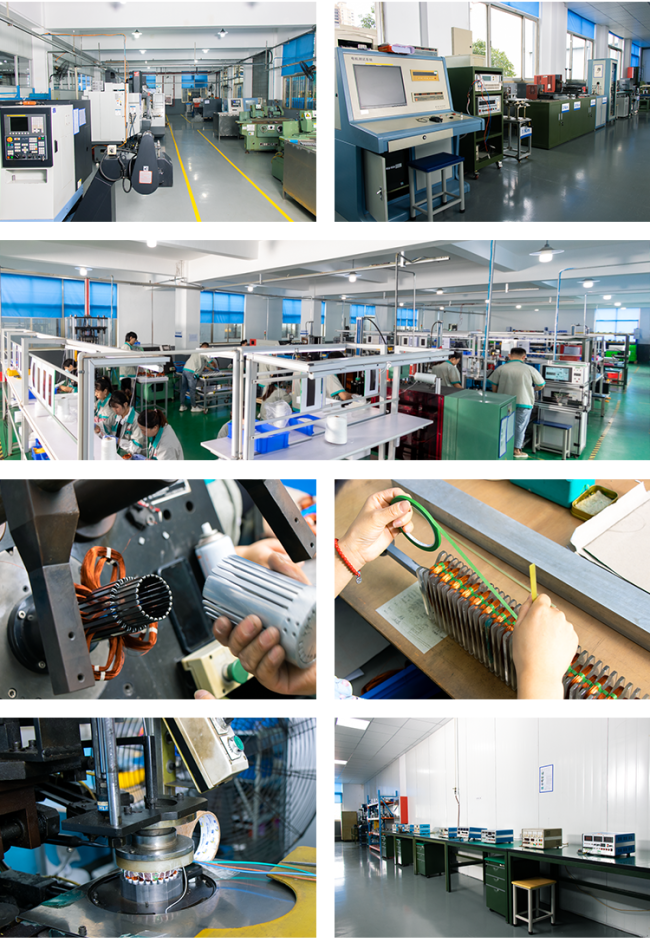

Ironless Linear Motor Factory environment
FAQ:
Q1:Are you a factory or trading company?
A:We are an integrated service company specializing in manufacturing automation equipment and are committed to helping customers improve productivity; the company has strong design and research and development capabilities, production capabilities and excellent service teams, and we have our own brand.
Q2:Can I make a OEM order?
A:We can customize the product you want according to your needs.No matter what your automation requirement it is, you will get the satisfied answer in the cooperation with HXC.
Q3:How does your factory do regarding quality control?
A:”Quality is priority.” Our team always attach great importance to quality controlling from the very beginning to the very end.
Q4:What about you packages?
A:We have been exporting lots of products to overseas,no any clients make any complains on our packages.Please contact us and we will send photos to show you the details of our secure packages.
Q5:What's your payment term?
A:T/T 30% deposit,full payment before delivery.
