High Force Speed Ironless Linear Motor , 37N Small Torque Motor
High Force Speed Linear Motor With Ironless Linear Motor Small Torque Motor
Product advantages:
| Performance | |||||||
| Parameter | Remarks | Symbol | Unit | EL42-03 | EL42-06 | EL42-03S DHM | EL42-06S DHM |
| Winding Type | S | S | Hall Integrated | ||||
| Motor type | 3 phases synchronous Ironless, 45Vacrms (60Vdc) | ||||||
| Peak Force@20℃/s ↑ | Magnet@25℃ | Fp | N | 37 | 75 | 37 | 75 |
| Continuous Force | Coil@110℃ | Fc | N | 10 | 20 | 10 | 20 |
| Maximum Speed | 60V | Vmax | m/s | 5.4 | 5.4 | 5.4 | 5.4 |
| Motor Force Constant | Mount. Sfc.@20℃ | K | N/Arms | 11.5 | 11.5 | 11.5 | 11.5 |
| Motor Constant | Coils@25℃ | S | N²/W | 9 | 19 | 9 | 19 |
| Electrical | |||||||
| Peak Current | Magnet@25℃ | Ip | Arms | 3.2 | 6.5 | 3.2 | 6.5 |
| Continuous Current | Coil@110℃ | Ic | Arms | 0.88 | 1.76 | 0.88 | 1.76 |
| Back EMF | Phase-Phase peak | Bemf | V/M/S | 9 | 9 | 9 | 9 |
| Resistance Per Phase | Coil@25℃ | Rph | Ω | 4.75 | 2.375 | 4.75 | 2.375 |
| Induction Per Phase | I<0.63lp | Lph | mh | 0.8 | 0.4 | 0.8 | 0.4 |
| Electrical Time Constant | Coil@25℃ | τe | ms | 0.16 | 0.16 | 0.16 | 0.16 |
| Power Loss | All coils | Pc | W | 14.8 | 29.6 | 14.8 | 29.6 |
| Thermal | |||||||
| Thermal R. | Coils to mount. Sfc. | Rth | ºC/W | 3.58 | 1.79 | 3.58 | 1.79 |
| Temp. Sensor | Temperature Cut-off | None (NTC/PTC can be customized) | |||||
| Mechanical | |||||||
| Coil Unit Weight | ex.cables | W | Kg | 0.03 | 0.06 | 0.03 | 0.06 |
| Coil Unit Length | ex.cables | L | mm | 34 | 67 | 34 | 67 |
| Motor Attraction Force | Rms@0A | Fa | N | 0 | 0 | 0 | 0 |
| Magnet Pitch | N-N | τ | mm(AWG) | 16.5 | 16.5 | 16.5 | 16.5 |
| Power Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | 4.5(3*0.3mm2) | 5.6(3*0.3mm2+5*0.08) | ||
| Sensor Cable Type | length 0.5m(3m,5m,10m optional) | Diameter | mm(mm2) | customizable | |||
| Cable life | Minimum | Cycles | ≥12,000,000 | ||||
| Bending Radius Static | Minimum | mm | ≥4xφ | ||||
| Bending Radius Dynamic | Minimum | mm | ≥7.5xφ | ||||

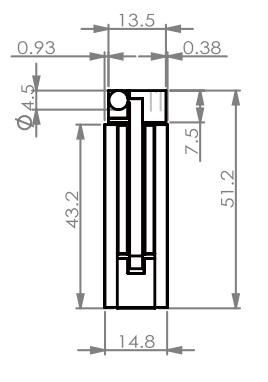

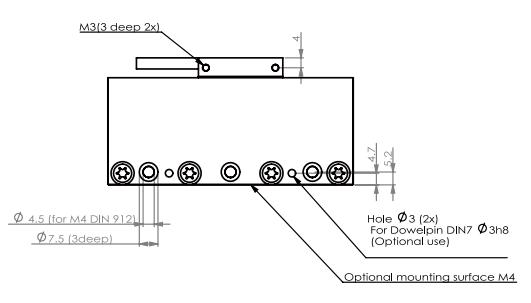

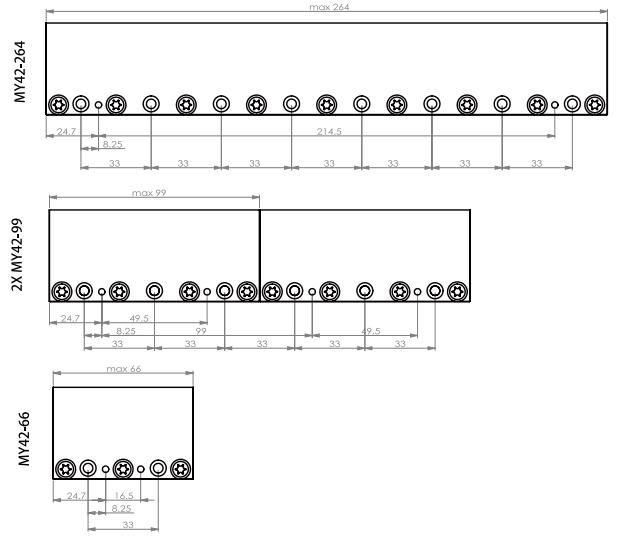

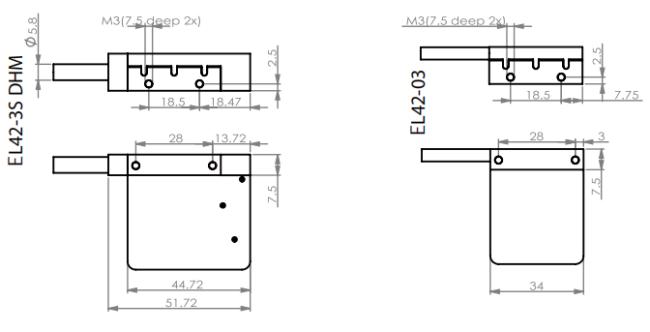

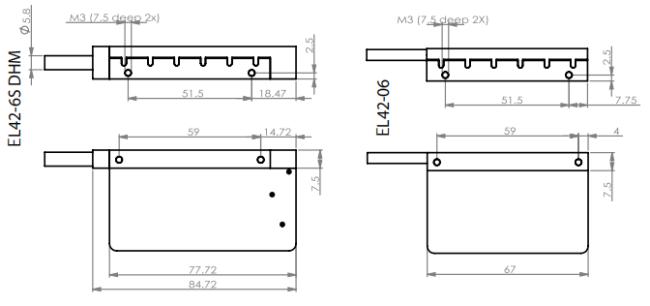

high speed linear motor dimension drawing:

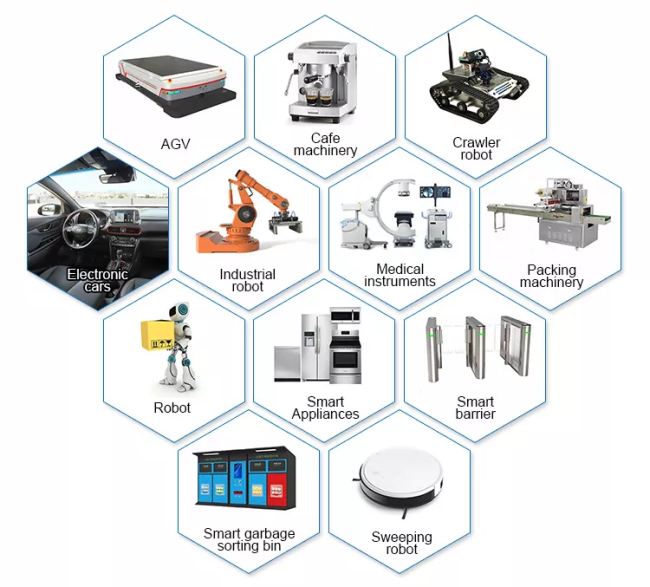

high speed linear motor application area
