Latest Technology Semiconductor Linear Motor Small Ironless
Our advantages
Advanced production equipment and modern production management is an important basis for HXC to provide customers with high-quality products, our company widely absorbs the latest technical achievements in the industry, continuous innovation and strive to continuously provide customers with more excellent performance and quality of direct drive motion control solutions.
Performance
| Parameter | Remarks | Symbol | Unit | EL109-3 | EL109-6 | EL109-9 | EL109-12 | EL109-18 | |||||
| Winding Type | N | S | N | S | N | S | N | S | N | S | |||
| Motor Type | 3 phases synchronous Ironless 230Vacrms(320Vdc) | ||||||||||||
| Peak Force | Magnet@25°C | Fp | N | 645 | 645 | 1290 | 1290 | 1935 | 1935 | 2580 | 2580 | 3870 | 3870 |
| Continuous Force | Coil@120°C | Fc | N | 125 | 125 | 250 | 250 | 375 | 375 | 500 | 500 | 750 | 750 |
| Maximum Speed | @320V | Vmax | m/s | 3.1 | 7.7 | 3.1 | 7.7 | 3.1 | 7.7 | 3.1 | 7.7 | 3.1 | 7.7 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 107 | 43.4 | 107 | 43.4 | 107 | 43.4 | 107 | 43.4 | 107 | 43.4 |
| Motor Constant | Coils@25°C | S | N2/W | 242 | 242 | 483 | 483 | 725 | 725 | 966 | 966 | 1449 | 1449 |
Electrical
| Parameter | Remarks | Symbol | Unit | EL109-3 | EL109-6 | EL109-9 | EL109-12 | EL109-18 | |||||
| Peak Current | Magnet@25°C | lp | Arms | 6 | 14.9 | 12.1 | 29.7 | 18.1 | 44.6 | 24.1 | 59.4 | 36.2 | 89.2 |
| Continuous Current | Coil@120°C | lc | Arms | 1.2 | 2.9 | 2.3 | 5.8 | 3.5 | 8.6 | 4.7 | 11.5 | 7 | 17.3 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 87 | 35 | 87 | 35 | 87 | 35 | 87 | 35 | 87 | 35 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 15.8 | 2.6 | 7.9 | 1.29 | 5.3 | 0.86 | 3.95 | 0.65 | 2.6 | 0.43 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 28.4 | 4.7 | 14.2 | 2.3 | 9.5 | 1.5 | 7.1 | 1.2 | 4.7 | 0.8 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Power Loss | All coils | Pc | W | 88 | 88 | 176 | 176 | 264 | 264 | 352 | 352 | 528 | 528 |

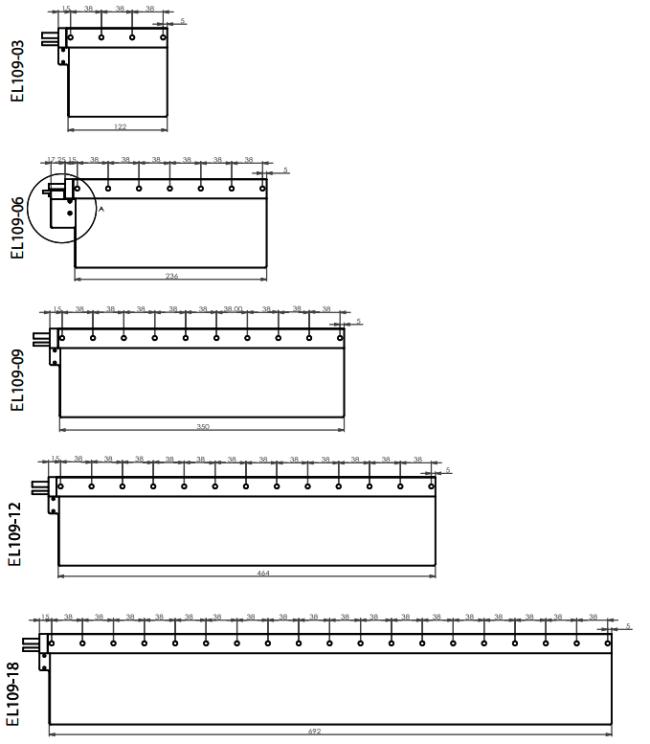

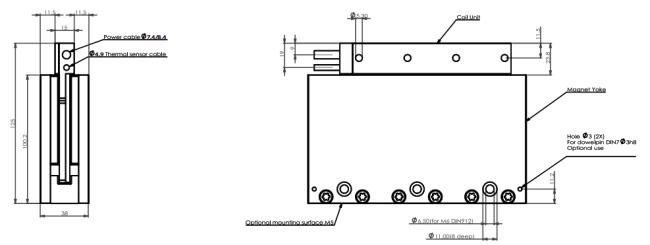

Product dimension drawing:

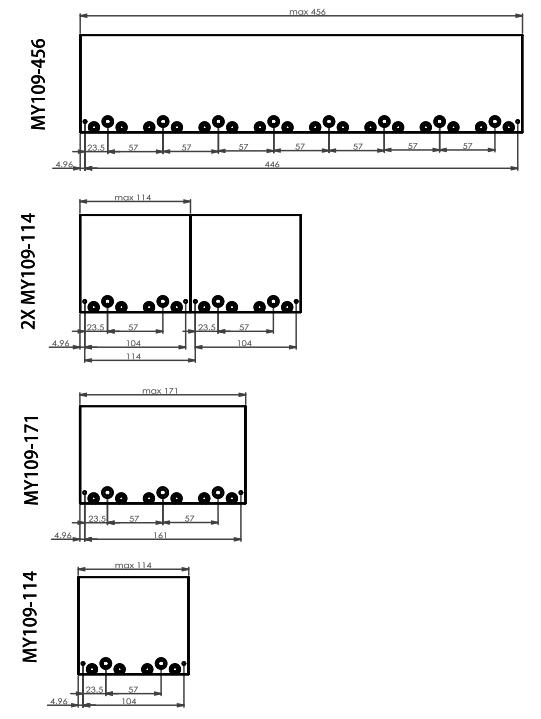

Magnet Yoke
Coil Unit
