High Accuracy Three Phase Linear Motor Small Ironless Magnetic High Force
Three Phase Linear Motor High Accuracy Small Ironless Magnetic High Force Motor
| Parameter | Remarks | Symbol | Unit | EL150-03 | EL150-06 | EL150-09 | |||
| Winding Type | N | S | N | S | N | S | |||
| Motor type | 3 phases synchronous Ironless, 230Vacrms (320Vdc) | ||||||||
| Peak Force@20℃/s ↑ | Magnet@25℃ | Fp | N | 1000 | 1000 | 2000 | 2000 | 3000 | 3000 |
| Continuous Force | Coil@110℃ | Fc | N | 250 | 250 | 500 | 500 | 750 | 750 |
| Maximum Speed | 60V | Vmax | m/s | 1.6 | 3.2 | 1.6 | 3.2 | 1.6 | 3.2 |
| Motor Force Constant | Mount. Sfc.@20℃ | K | N/Arms | 177 | 84 | 177 | 84 | 177 | 84 |
| Motor Constant | Coils@25℃ | S | N²/W | 913 | 1826 | 2739 | |||
Three Phase Linear Motor Electrical
| Peak Current | Magnet@25℃ | Ip | Arms | 5.6 | 11.9 | 11.3 | 23.8 | 16.9 | 35.7 |
| Continuous Current | Coil@110℃ | Ic | Arms | 1.5 | 3 | 3 | 6 | 4.5 | 9 |
| Back EMF | Phase-Phase peak | Bemf | V/M/S | 145 | 69 | 126 | 60 | 145 | 69 |
| Resistance Per Phase | Coil@25℃ | Rph | Ω | 11.5 | 2.84 | 5.75 | 1.45 | 3.8 | 0.95 |
| Induction Per Phase | I<0.63lp | Lph | mh | 34.5 | 8.5 | 17.3 | 4.4 | 11.4 | 2.9 |
| Electrical Time Constant | Coil@25℃ | τe | ms | 3 | 3 | 3 | 3 | 3 | 3 |
| Power Loss | All coils | Pc | W | 92 | 92 | 183 | 183 | 275 | 275 |

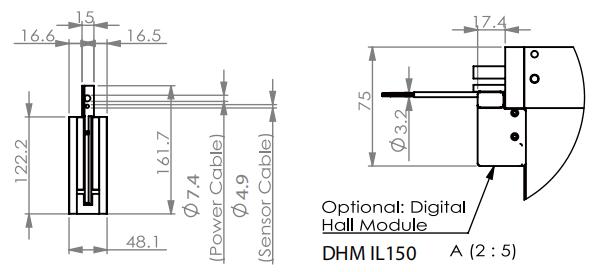

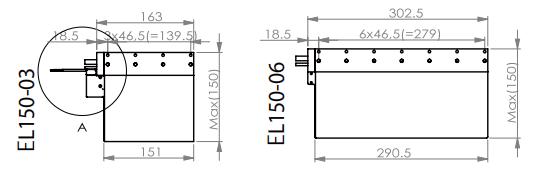

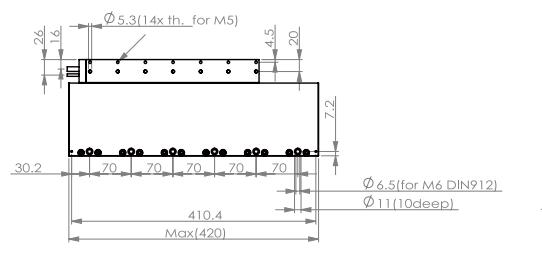

Three Phase Linear Motor Dimension Drawing:

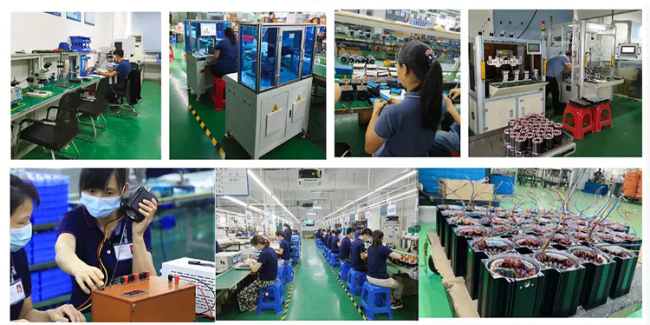

Factory environment
