High Thrust XYR Alignment Stages High Weight XYR Alignment Platform
High Thrust Large Torque High Precision Calibration And Alignment Platform
High thrust large torque High Precision Calibration And Alignment Platform
XY θ The alignment platform is a high-resolution, high-weight XYθ Stages platform is widely used in optical measuring instruments, wafer calibration, laser cutting and drilling.
In order to meet the different design needs of users, we provide hollow and solid designs. The three-axis compact design greatly reduces the overall height, making the platform lighter, thinner and more space saving.
| Specification parameters | TP120 | ||
| Driving and mechanical characteristics | X | Y | θ |
| Effective travel | 20mm | 20mm | 60° |
| Rated thrust / torque | 12Nm | 12Nm | 0.4Nm |
| Peak thrust / torque | 40Nm | 40Nm | 2.0Nm |
| Maximum speed | 300mm/S | 300mm/S | 400°/S |
| Maximum acceleration | 20m/S2 | 20m/S2 | 20m/S2 |
| Maximum load | 6kg | 6kg | 6.8kg |
| sensor signal | Differential ABZ phase | Differential ABZ phase | Differential ABZ phase |
| Sensor resolution | 0.05μm | 0.05μm | 0.36arcsec |
| Bidirectional repetition accuracy | ±0.15μm | ±0.15μm | ±0.8arcsec |
| Operating ambient temperature | 10~40℃ | ||
| Ambient humidity | 20-80% (no condensation) | ||
| Cable wire length | 3m | ||

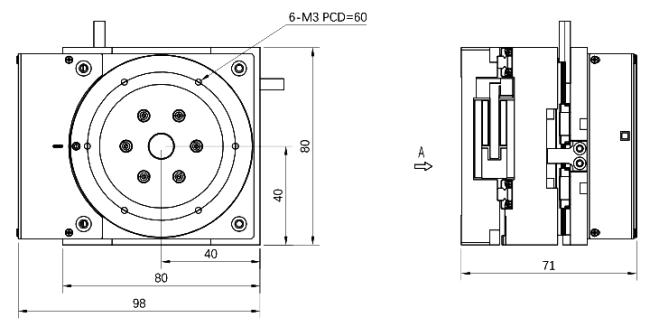

Outline dimension drawing
