CE Grating Optical Ruler Measuring Instruments Grating Linear Ruler Scale

Grating Ruler Optical Measuring Instruments Linear Grating Ruler Scale

Grating Ruler Optical Measuring Instruments Linear Grating Ruler Scale

Product features

Light through the rotation of the code plate and then through the fixed grating slit to achieve the purpose of signal recognition.

Product performance

High temperature test 85℃, 500 hours, low temperature test -40℃ 500 hours, cold and heat shock 85℃ -- 40℃ for one hour each cold and heat cycle, no optical properties, no decoating phenomenon occurred.

Technical specifications

1. Material: glass

2. Standard: 0-10/20-40

3. Optical characteristics: it can realize the membrane system design of any band specified by the customer

4. Maximum processing size: φ152mm

5. Line accuracy: 1.5±0.3um

1. About sample:
please pay the sample fee before we receive the first order.

2. About Customization:
We support customization of incoming drawings. The drawing format is as follows: dxf. dwg. gdsii. tdb.

3. Delivery date:
(1)We will deliver the standard products to you within 5 working days.
(2)Generally, customized products shall be delivered within 7 to 9 working days after payment and confirmation of drawings,excluding the day of confirmation.
(3) If there is mass customization, the delivery time shall be determined according to the specific situation.

4. Quality assurance: we will strictly control errors in the production process; Strict inspection shall be carried out before
delivery to ensure that the products are qualified and the packaging is intact.

Product Certification

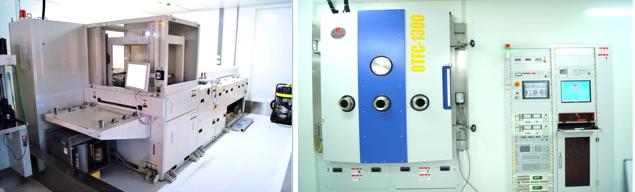

Product Equipment

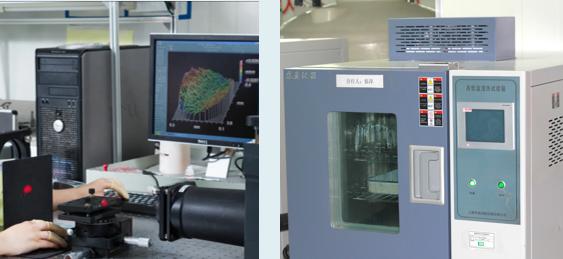

Inspecting Equipment
