Zettlex IncOder Inductive Encoders Mini Range 37-58mm Non-Contact High-Precision
Robust Angular Position Measurement for Extreme Environments
Zettlex IncOders are non-contact devices for precision angle measurement. They work like a transformer, using an inductive technique. IncOders may be considered as an inductive angle encoder.

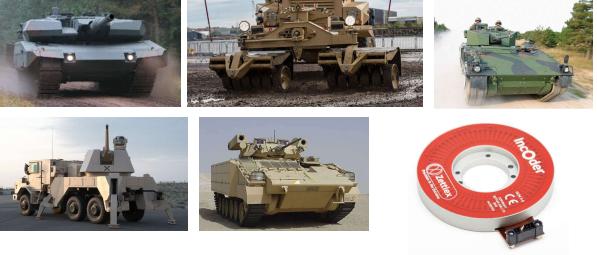

IncOders are ideally suited to harsh environments – where potentiometers, optical or capacitive devices may prove unreliable.
High-reliability Inductive Angle Encoder Technology

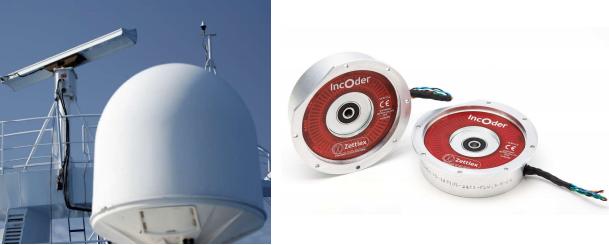

IncOders have 2 main parts – a Stator and a Rotor – each shaped like a flat ring. The large bore makes it easy to accommodate through-shafts, slip-rings, optical-fibres, pipes or cables.
The Stator is powered and the Rotor is passive. The Stator contains the electronics to receive power and generate an output signal. The output signal from the Stator shows the true absolute angular position of the Rotor relative to the Stator without the need of any motion.
imple Installation: ‘Fit and Forget’ Technology
IncOder inductive angle encoders do not require compliant or special couplings and the Rotor & Stator can simply be screwed to the host product. Precise mechanical mounting is not required and there are no bearings.
Whereas optical or capacitive angle encoders can be unreliable in harsh conditions – notably with condensation or dust – Zettlex angle encoders are generally unaffected by foreign matter and IP67 rated versions are available. Unlike capacitive devices, there is no need to earth the Rotor or Stator. Robust, hard-anodized aluminium alloy housings and monolithic constructions are used throughout.
There are no contacting, delicate or wearing parts, so there is no need for periodic replacement, service or maintenance. In other words, IncOder angle encoders are true ‘fit and forget’ devices.

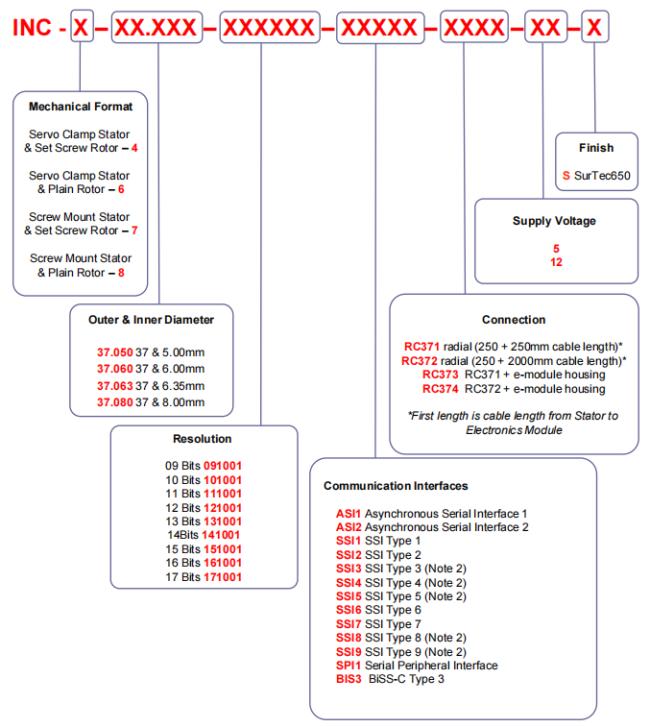

Measurement & Electrical Data for A/B/Z Pulses Comms Interfaces - Product Option ABZ1-6
| INC-x-58 | ||
| Measurement | Incremental with reference mark. Position of reference mark programmable by user. | |
| Resolution | As above (limited to 17-bits) - resolution defined as one edge of A/B pulse train | |
| Repeatability | .+/-1 | count |
| Static Accuracy over 360O | ≤75arc-seconds or 0.36milliradians | |
| Internal Position Update Period | <0. 1 | millisecond |
| Thermal Drift Coefficient | < 1 | ppm/K Full-Scale |
| Max. Speed for Angle Measurement | 10 to 16bits = 7200r.p.m . 17bits = 3600r.p.m . | |
| Data Outputs | A/B pulses with Z pulse ref. Z position settable from connector/cable. Z pulse width selectable by Product Option/ Part Number. | |
| Power Supply | 5VDC±10% or 12VDC (8-32VDC) or 24VDC (8-32VDC) | VDC |
| Current Consumption | <150 (does not vary significantly with supply voltage) | milliAmp |
| Reverse Polarity | PSU Reverse polarity protected to max. supply voltage | VDC |
| Connector (ACx & RFCx Product Options) | As above - resolution defined as one edge of A/B pulse train | |
| Mating Connector (ACx & RFCx) | Harwin Data Mate Vertical Socket Type M80-461-10-42 (alternative M80-461-10-05) | |
| Z Position Setting | Via Connector Pin or Integral Cable - see details for set and reset in relevant Section for Connector, Cable or Comms Interface | |
| Power Up Time To 1st Measurement | <500 | millisecond |
