CE Soft Landing Module Rotating Linear Lift Rotating Power Control Module
Linear Rotary Actuators lift rotating Power control module Soft Landing Module Design High Precision And Durable
Linear Rotary Actuators Lift Rotating Power Control Module Soft Landing Module Design High Precision And Durable
Open loop control, soft landing module design;
Current-voltage curve control to achieve precise force control;
Equipped with high-precision DD motor to achieve rotary motion;
Linear motor realizes lifting motion;
Use air bearing to ensure runout accuracy.
ZU1030-1 Product specification:
| Specification parameters | ZU1030-1 | |
| Driving and mechanical characteristics | Z-axis | R-axis |
| Effective travel(mm/°) | 30 | 360 |
| Rated thrust / torque(N/Nm) | 8.8 | 0.06 |
| Peak thrust / torque(N/Nm) | 35 | 0.14 |
| Rated current(Arms) | 2.2 | 1.8 |
| Peak current(Arms) | 8.9 | 4.6 |
| Line resistance(Ω) | 1.5 | 2.1 |
| Inductance(mH) | 0.3 | 1 |
| Reverse power constant(Vrms/m/s V/krpm) | 1.3 | 2.8 |
| Pole spacing(mm) | 36 | / |
| Rotor pole number(p) | / | 16 |
| Encoder resolution(μm P/R) | 1 | 432000 |
| Straightness/Circle Runout(μm ) | 3 | 3 |
| Maximum speed(mm/s rpm) | 500 | 1000 |
| Maximum acceleration(G) | 2 | 2 |
| Repeatability(μm/ °) | 2 | 0.001 |
| Power specification(VDC) | 24 | 24/48 |
| Z-axis guide type | Cross-roller guides with anti-creep system | |
| total weight(g) | 1300 | |
| Moving axis weight(g) | 350 | |
| Force control accuracy | 10~30g±10% 30~500g ± 3g | |
| main material | Aluminum/stainless steel, anodized black | |
| Operating ambient temperature | 10~40°C | |
| Ambient humidity | 20-80% (no condensation) | |
| Cable wire length | 5m | |

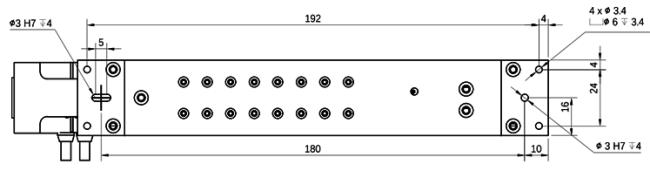

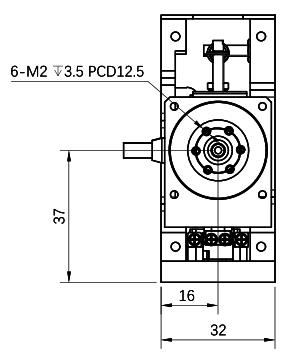

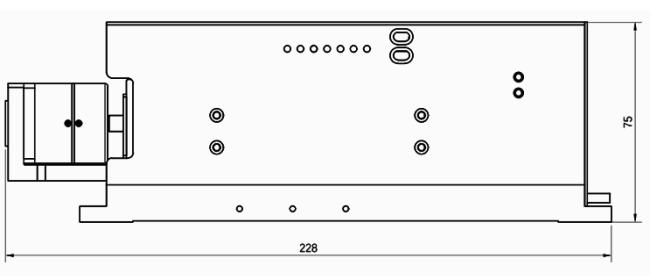

Product dimension drawing:
Q1. Can I have a sample order?
A: yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 5-7 days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: By express or air or sea .
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Application area
Product testing
