Large Force Ironless Cogging High Force Linear Motor With High Acceleration EL109X
Coil nuit naming:
EL109X-6-S-01
EL=Iron Less; 109X=Series Type; 6=Coil numbers; S=Winding Types;
01=Standard cables lenghth 1m, can be customized
Magnet plate naming:
MY59-90
MY=Magnet Yoke; 59=Series Type; 90=Length of Magnet Yoke
Performance
| Parameter | Remarks | Symbol | Unit | EL109X-3 | EL109X-6 | EL109X-9 | EL109X-12 | EL109X-18 | |||||
| Winding Type | N | S | N | S | N | S | N | S | N | S | |||
| Motor Type | 3 phases synchronous Ironless 230Vacrms(320Vdc) | ||||||||||||
| Peak Force | Magnet@25°C | Fp | N | 730 | 730 | 1460 | 1460 | 2190 | 2190 | 2920 | 2920 | 4380 | 4380 |
| Continuous Force | Coil@120°C | Fc | N | 145 | 145 | 290 | 290 | 435 | 435 | 580 | 580 | 870 | 870 |
| Maximum Speed | @320V | Vmax | m/s | 2.6 | 6.8 | 2.6 | 6.8 | 2.6 | 6.8 | 2.6 | 6.8 | 2.6 | 6.8 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 127 | 49 | 127 | 49 | 127 | 49 | 127 | 49 | 127 | 49 |
| Motor Constant | Coils@25°C | S | N2/W | 340 | 340 | 680 | 680 | 1020 | 1020 | 1359 | 1359 | 2039 | 2039 |
Electrical
| Parameter | Remarks | Symbol | Unit | EL109X-3 | EL109X-6 | EL109X-9 | EL109X-12 | EL109X-18 | |||||
| Peak Current | Magnet@25°C | lp | Arms | 5.7 | 14.9 | 11.5 | 29.8 | 17.2 | 44.7 | 23 | 59.6 | 34.5 | 89.4 |
| Continuous Current | Coil@120°C | lc | Arms | 1.1 | 3 | 2.3 | 5.9 | 3.4 | 8.9 | 4.6 | 11.8 | 6.9 | 17.8 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 104 | 40 | 104 | 40 | 104 | 40 | 104 | 40 | 104 | 40 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 15.82 | 2.6 | 7.9 | 1.29 | 5.3 | 0.86 | 3.95 | 0.65 | 2.6 | 0.43 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 28.5 | 4.7 | 14.2 | 2.3 | 9.5 | 1.5 | 7.1 | 1.2 | 4.7 | 0.8 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Power Loss | All coils | Pc | W | 119 | 119 | 238 | 238 | 357 | 357 | 476 | 476 | 713 | 713 |

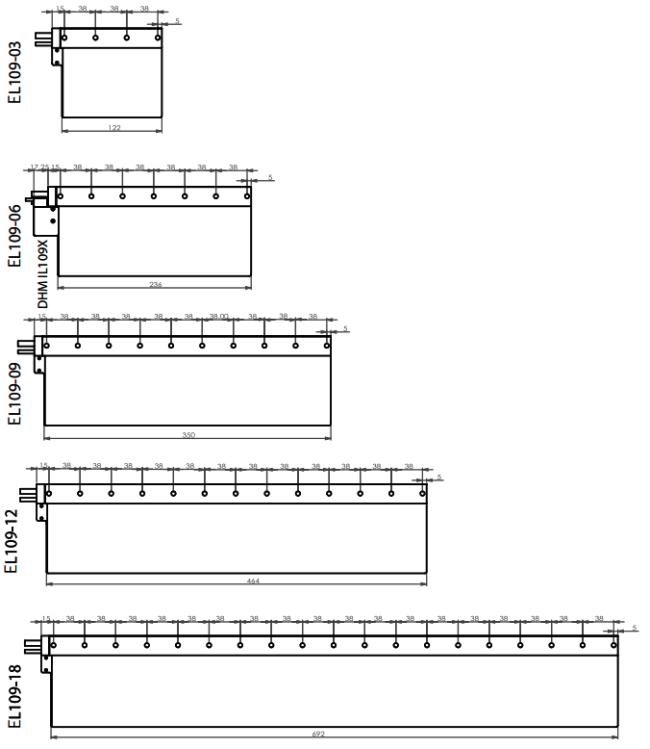

Product dimension drawing:
Magnet Yoke
Coil Unit
Factory environment
FAQ:
Q1. Can I have a sample order?
A: yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 5-7 workdays.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: By express or air or sea .
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty to our products.
Q8: How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%
Q9:How is your quality control?
A: Our professional QC will check the quality during production and carry out quality test before shipment.
