800g Linear Rotary Actuators Compact Built In Grating Encoder Accuracy 17bit
Linear Rotary Motor Extremely compact structure built-in grating Encoder Accuracy 17bit
Linear Rotary Motor Extremely compact structure built-in grating Encoder Accuracy 17bit
1. The minimum thickness is 10mm, saving internal space, multi-point matrix arrangement
2. In operation, it supports programmed setting of strength, speed and acceleration
3. Extremely light touch, effective protection of delicate fragile or high unit price components
| Model | Voltage(VDC) | Size(mm) | Weight(g) | Straight axis | ||||
| Effective trip(mm) | Maximum thrust(N) | Continue to push(N) | Force constant(N/A) | Resistance(Ω) | ||||
| GAS-LRS2525-1-48 | 48 | 203X85X25 | 800 | 25 | 17 | 7.0 | 5.40 | 13.3 |
| Sustained current(Amp) | Maximum current(Amp) | Inductance(mH) | Vacuum V, spring S | Driver | ||||
| 1.2 | 3.0 | 4.08 | V,S | Pulse/bus | ||||
| Rotary axis | ||||||||
| Peak torque(mN.M) | Rated torque(mN.M) | Encoder(Bit) | Rated speed(RPM) | Driver | ||||
| 43.5 | 17.5 | 17 | 3000 | Pulse | ||||
Product size drawing
FAQ:
Q:Can I buy one as sample?
A: Of course.
Q:how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
Q:what services can we provide?
A:Accepted Delivery Terms: By express or air or sea；
Accepted Payment Currency:USD.
Q. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty.
Q: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
Application area

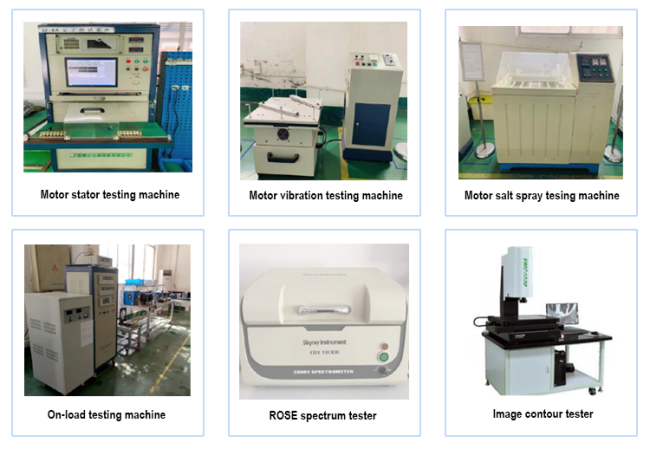

Test equipment
