Remote Control 6000N Actuator Linear Motor Direct Drive Linear Motor Module
Popular Linear Actuator Remote Control Iron Core Direct Drive Linear Motor Module
Popular Linear Actuator Remote Control Iron Core Direct Drive Linear Motor Module
| Parameter | Remarks | Symbol | Unit | EC230WC-12 | EC230WC-15 | EC230WC-18 | EC230WC-24 | EC230WC-30 | EC230WC-45 |
| Winding Type | S | S | S | S | S | S | |||
| Motor type | 3 phases synchronous Ironless 380Vacrms(600Vdc) | ||||||||
| Ultimate Force | Magnet@25°C | Fu | N | 3360 | 4200 | 5040 | 6720 | 8400 | 12600 |
| Peak Force | Magnet@25°C | Fp | N | 3200 | 4000 | 4800 | 6400 | 8000 | 12000 |
| Continuous Water Force | Coil@110°C | Fc | N | 2080 | 2080 | 3120 | 4160 | 5200 | 7800 |
| Continuous Air Force | Coil@110°C | Fc | N | 1600 | 2000 | 2400 | 3200 | 4000 | 6000 |
| Maximum Speed | @560V | Vmax | m/s | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 174.0 | 174.0 | 174.0 | 174.0 | 174.0 | 174.0 |
| Motor Constant | Coils@25°C | S | N2/W | 1802 | 2243 | 2883 | 3604 | 4485 | 12615 |
Electrical
| Parameter | Remarks | Symbol | Unit | EC230WC-12 | EC230WC-15 | EC230WC-18 | EC230WC-24 | EC230WC-30 | EC230WC-45 |
| Ultimate Current | Magnet@25°C | lu | Arms | 26.0 | 34.0 | 40.0 | 52.0 | 65.0 | 98.0 |
| Peak Current | Magnet@25°C | lp | Arms | 21 | 27 | 32 | 43 | 53 | 80 |
| Continuous Current Water cooled | Coil@110°C | lc | Arms | 12 | 15 | 18 | 24 | 30 | 45 |
| Continuous Current Air cooled | Coil@110°C | lc | Arms | 9.2 | 12 | 14 | 18.5 | 23 | 35 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 142 | 142 | 142 | 142 | 142 | 142 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 2.8 | 2.25 | 17.5 | 14.0 | 11.3 | 8.0 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 28.0 | 22.5 | 17.5 | 14.0 | 11.3 | 8.0 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 10 | 10 | 10 | 10 | 10 | 10 |
| Power Loss | All coils | Pc | W | 1847 | 2319 | 2597 | 3693 | 4638 | 6957 |

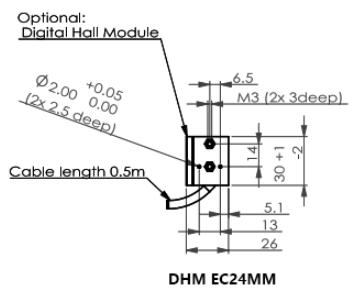

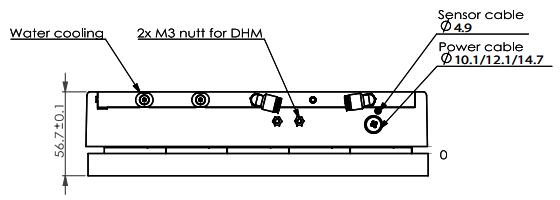

Product dimension drawing:

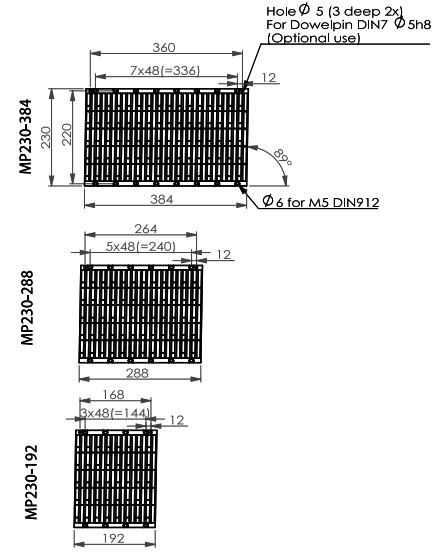

Magnet Plate

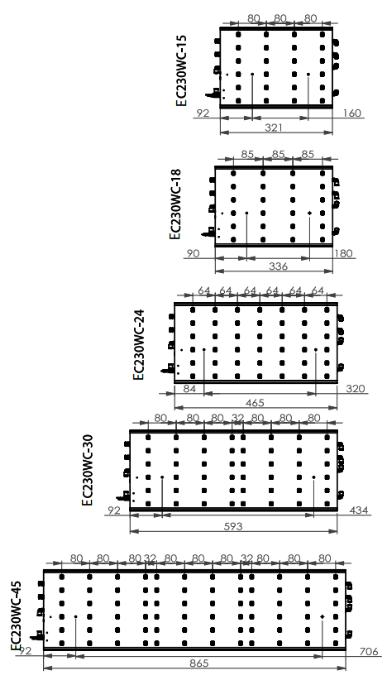

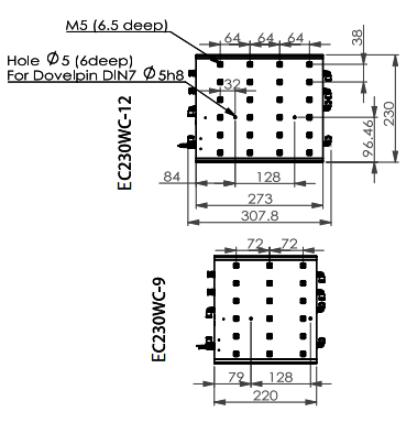

Coil Unit
FAQ:
Q:What is the advantage about your company?
A:Our company has professional team and professional production line.
Q:Why should I choose your products?
A:Our products are high quality and low price.
Q:The logo and the color can be customized?
A:Yes, we welcome you to sample custom.
Q:Any other good service your company can provide?
A:Yes,we can provide good after-sale and fast delivery.
Application area

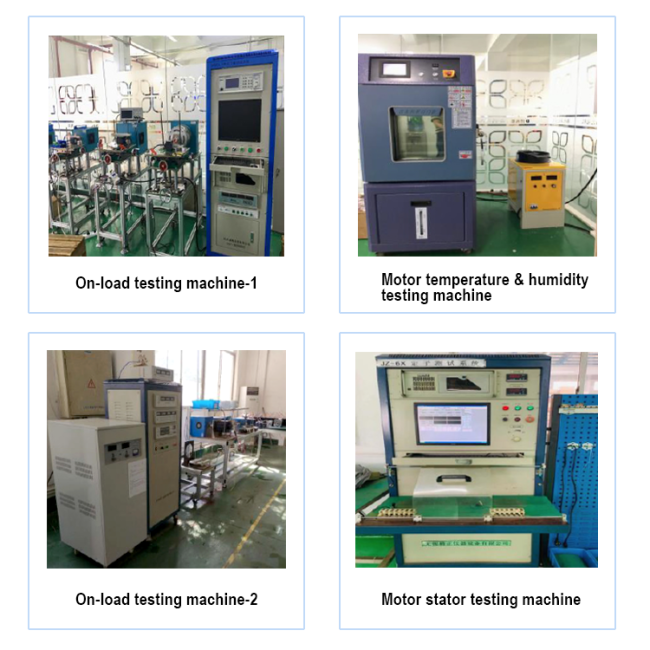

Test equipment
