High Acceleration Micro Linear Servo Motor , High Fast Response Ironless Linear Motor
Linear Servo Motor Performance
| Parameter | Remarks | Symbol | Unit | EL109-3 | EL109-6 | EL109-9 | EL109-12 | EL109-18 | |||||
| Winding Type | N | S | N | S | N | S | N | S | N | S | |||
| Motor Type | 3 phases synchronous Ironless 230Vacrms(320Vdc) | ||||||||||||
| Peak Force | Magnet@25°C | Fp | N | 645 | 645 | 1290 | 1290 | 1935 | 1935 | 2580 | 2580 | 3870 | 3870 |
| Continuous Force | Coil@120°C | Fc | N | 125 | 125 | 250 | 250 | 375 | 375 | 500 | 500 | 750 | 750 |
| Maximum Speed | @320V | Vmax | m/s | 3.1 | 7.7 | 3.1 | 7.7 | 3.1 | 7.7 | 3.1 | 7.7 | 3.1 | 7.7 |
| Motor Force Constant | Mount.Sfc.@20°C | K | N/Arms | 107 | 43.4 | 107 | 43.4 | 107 | 43.4 | 107 | 43.4 | 107 | 43.4 |
| Motor Constant | Coils@25°C | S | N2/W | 242 | 242 | 483 | 483 | 725 | 725 | 966 | 966 | 1449 | 1449 |
Linear Servo Motor Electrical
| Parameter | Remarks | Symbol | Unit | EL109-3 | EL109-6 | EL109-9 | EL109-12 | EL109-18 | |||||
| Peak Current | Magnet@25°C | lp | Arms | 6 | 14.9 | 12.1 | 29.7 | 18.1 | 44.6 | 24.1 | 59.4 | 36.2 | 89.2 |
| Continuous Current | Coil@120°C | lc | Arms | 1.2 | 2.9 | 2.3 | 5.8 | 3.5 | 8.6 | 4.7 | 11.5 | 7 | 17.3 |
| Back EMF | Phase-Phase peak | Bemf | V/M/s | 87 | 35 | 87 | 35 | 87 | 35 | 87 | 35 | 87 | 35 |
| Resistance Per Phase | Coil@25°C | Rph | Ω | 15.8 | 2.6 | 7.9 | 1.29 | 5.3 | 0.86 | 3.95 | 0.65 | 2.6 | 0.43 |
| Induction Per Phase | l<0.63lp | Lph | Mh | 28.4 | 4.7 | 14.2 | 2.3 | 9.5 | 1.5 | 7.1 | 1.2 | 4.7 | 0.8 |
| Electrical Time Constant | Coil@25°C | Te | Ms | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 | 1.8 |
| Power Loss | All coils | Pc | W | 88 | 88 | 176 | 176 | 264 | 264 | 352 | 352 | 528 | 528 |
Linear servo motor dimension drawing:
Magnet Yoke
Coil Unit

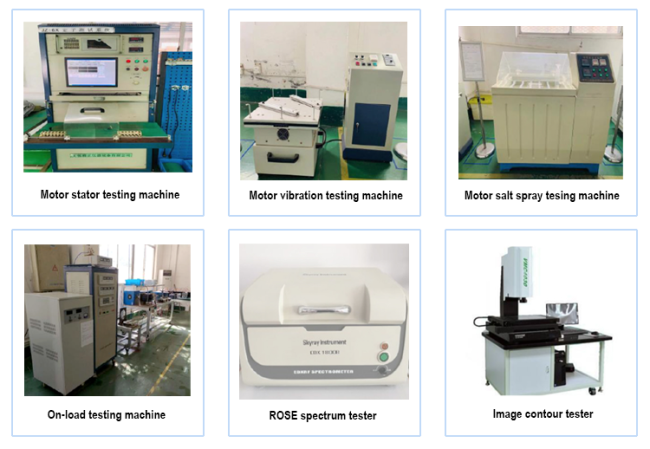

Test equipment
