Light Load Coreless Voice Coil Friction Free Rotor Direct Drive Voice Coil
Coreless Direct Drive Voice Coil Motor High Response Light Load Movement Friction-Free Rotor And Stator
The high-density and high-precision voice coil motor adopts the ironless direct drive technology, which has no friction between the moving and stator, no cogging effect, light load, high response speed, and excellent reliability. Suitable for high-frequency short-stroke motion systems. It is widely used in medical, semiconductor manufacturing, small precision replacement measuring instruments, active shock absorption systems, and vibration platforms.
| Performance rating | Unit | QY6-L15 |
| Total trip | mm | 15 |
| Peak thrust | N | 20 |
| Continuous thrust (under temperature Tmax) | N | 6 |
| Motor constant (under 25 ℃) | 4.3 | |
| Voltage | V | 24 |
| Peak current | Arms | 2.5 |
| Continuous current (under temperature Tmax) | Arms | 0.8 |
| The most powerful | W | 48 |
| Resistance(under 25°C±10%) | Ω | 8.9 |
| Inductance ±20% | mH | 2.7 |
| potential constant(under25°C±10%) | Vpeak/m/s | 7.5 |
| Thrust constant(under25°C±10%) | N/Arms | 7.5 |
| Rotor coil weight±15% | kg | 0.16 |
| Total weight±15% | kg | 0.56 |
| Maximum allowable coil temperature | °C | 150 |
| Positioning accuracy | um | ±5 |
| Repeat positioning accuracy | um | ±1 |

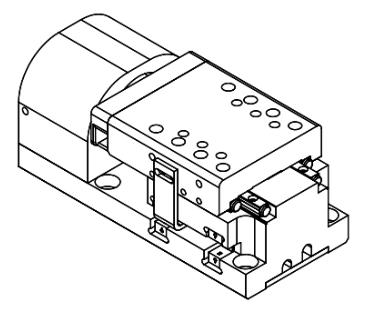

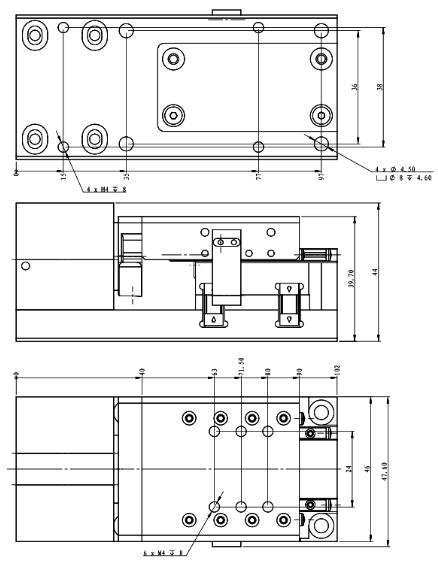

Outline dimension drawing
Application area

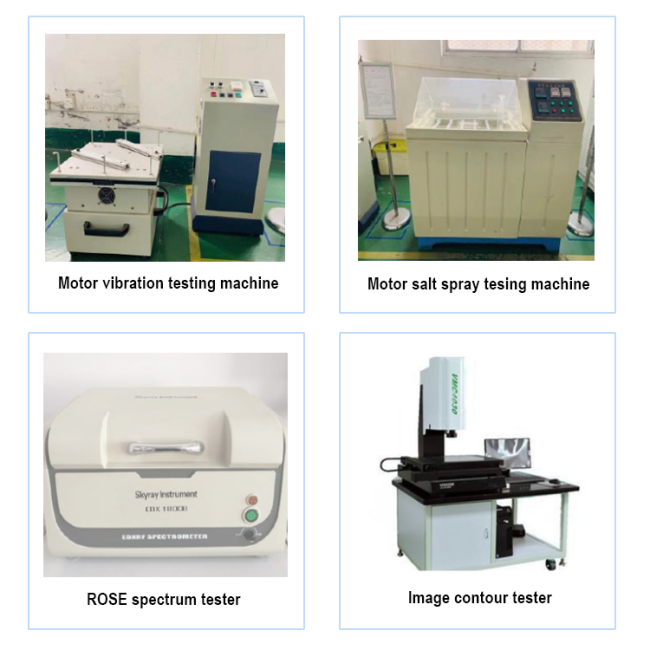

Test equipment
